Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Oil pump
by
Cylinder-piston-wrist pin unit
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Steering bear. assy.
5982615
$114,75 Unit Price incl. VAT
2
Front fork
601118
Not Available
3
Steering tube ring nut
011109
Not Available
4
Steering security plate
582787
$3,65 Unit Price incl. VAT
5
plate
599499
Not Available
6
Sleeve
599550
Not Available
7
screw M8x40 (Marzocchi)
599511
Not Available
8
screw M6x25 (Marzocchi)
599512
$3,65 Unit Price incl. VAT
9
screw M10x30 (Marzocchi)
599513
Not Available
10
Cup (Marzocchi)
599504
$1,92 Unit Price incl. VAT
11
Disc cover bush
599510
$3,40 Unit Price incl. VAT
12
Washer (Marzocchi)
599572
Not Available
13
Gasket ring (Marzocchi)
599501
$9,40 Unit Price incl. VAT
14
Pad (Marzocchi)
599509
$11,77 Unit Price incl. VAT
15
Stop ring (Marzocchi)
599503
Not Available
16
Dust cover + spring (Marzocchi)
599502
$8,58 Unit Price incl. VAT
17
Upper bush (Marzocchi)
599505
Not Available
18
Lower bush
599629
Not Available
19
Sleeve
599500
Not Available
20
Cover
601026
$0,84 Unit Price incl. VAT
21
Sleeve
599549
Not Available
22
Stop ring (Marzocchi)
601284
$4,82 Unit Price incl. VAT
23
Stop ring (Marzocchi)
601287
Not Available
24
FORK O-RING X9 500
601350
Not Available
25
Fork spacer
601351
$3,65 Unit Price incl. VAT
26
FORK STEM
601352
Not Available
27
Cover
621365
$4,82 Unit Price incl. VAT

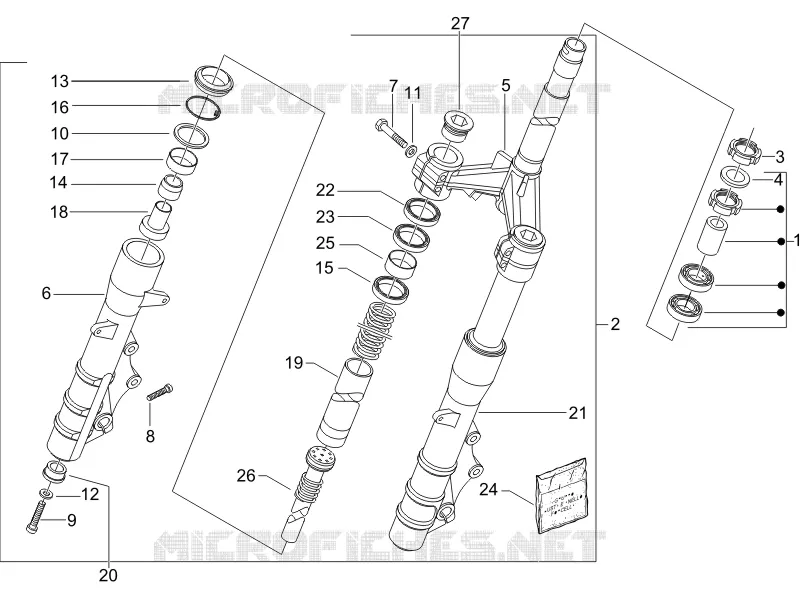

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
