Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog
Stand/s
6
Parts Diagram
Parts Catalog
Handlebars coverages
by
Throttle body - Injector - Union pipe
Stand/s
1
2
3
4
7
8
9
11
12
14
15
16
17
18
19
25
29
30
31
32
33
34
36
39
40
41
42
1
Self locking nut M10
232108
Not Available
1
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
2
Lateral stand
647417
$22,55 Unit Price incl. VAT
3
Side stand fixing screw.
647595
Not Available
4
Pad
272426
Not Available
7
Spring
295789
$4,82 Unit Price incl. VAT
8
Spring
295788
$4,82 Unit Price incl. VAT
9
Gasket
191189
$0,17 Unit Price incl. VAT
11
X9 500 center stand
601059
$218,86 Unit Price incl. VAT
12
Bushing
647225
$3,65 Unit Price incl. VAT
14
Self locking nut M10
232108
Not Available
14
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
15
screw
583480
$0,84 Unit Price incl. VAT
16
Bolt
031153
$3,65 Unit Price incl. VAT
17
Spring
583162
$12,62 Unit Price incl. VAT
18
plate
599044
Not Available
19
Spring
583161
$6,38 Unit Price incl. VAT
25
Washer
296748
Not Available
29
Gasket
235661
Not Available
30
Cover
582893
$5,38 Unit Price incl. VAT
31
Roller bearing
582699
Not Available
32
Bearing ring
582700
$5,90 Unit Price incl. VAT
33
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
34
Button for side stand
639542
$41,85 Unit Price incl. VAT
36
Pad
563984
$5,62 Unit Price incl. VAT
39
Washer 5,3x10x0
012532
$0,67 Unit Price incl. VAT
40
Hex socket screw M5x16
292889
Not Available
41
PIN
647568
Not Available
42
Self locking nut M10
232108
Not Available
42
Self locking nut M10
002440
$0,34 Unit Price incl. VAT

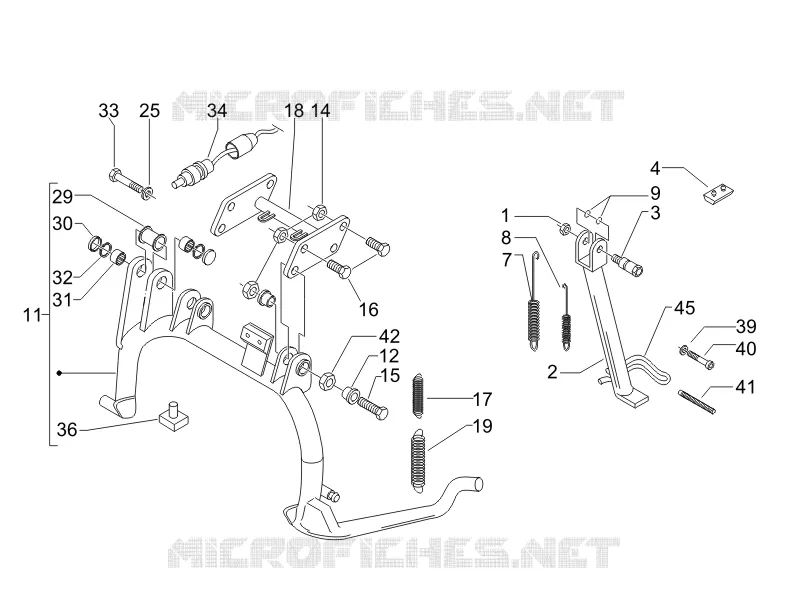

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
