Parts Catalog
Silencer
6
Parts Diagram
Parts Catalog
Throttle body - Injector - Union pipe
by
Air filter
Silencer
1
2
3
4
5
6
7
10
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
SILINCER ASSY
841024
Not Available
2
Hex socket screw
834038
$0,29 Unit Price incl. VAT
3
Washer
834039
$2,95 Unit Price incl. VAT
4
Spacer
834040
$5,00 Unit Price incl. VAT
5
Stainless steel bowl washer
834643
$4,82 Unit Price incl. VAT
6
Spacer
834041
$5,20 Unit Price incl. VAT
7
Bushing
828185
Not Available
10
Protection
577309
$8,51 Unit Price incl. VAT
11
Manifold
832446
Not Available
12
Washer 10,5x16x1
830298
$3,65 Unit Price incl. VAT
13
Screw plug
833417
$5,53 Unit Price incl. VAT
14
Hose clamp
874957
$18,12 Unit Price incl. VAT
14
Hose clamp
840370
Not Available
15
Conical washer
834951
$0,15 Unit Price incl. VAT
16
Guard
833910
$40,12 Unit Price incl. VAT
18
Exhaust pipe gasket
828194
$7,94 Unit Price incl. VAT
19
Hex socket screw M8x80
842502
$1,43 Unit Price incl. VAT
20
Hex screw M8x30
599208
$0,62 Unit Price incl. VAT
21
Nut M8
020208
$2,95 Unit Price incl. VAT
22
Nut M8
020008
$0,08 Unit Price incl. VAT
23
Flanged nut
015341
$0,42 Unit Price incl. VAT
24
Belleville spring
007608
$2,95 Unit Price incl. VAT
25
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
26
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
27
Washer
840569
$3,65 Unit Price incl. VAT
28
Flat washer
846163
$3,65 Unit Price incl. VAT
29
Pin
599391
$17,07 Unit Price incl. VAT
30
Pin
599392
$8,91 Unit Price incl. VAT
31
Silencer support band
599553
Not Available
32
screw
833569
$2,95 Unit Price incl. VAT

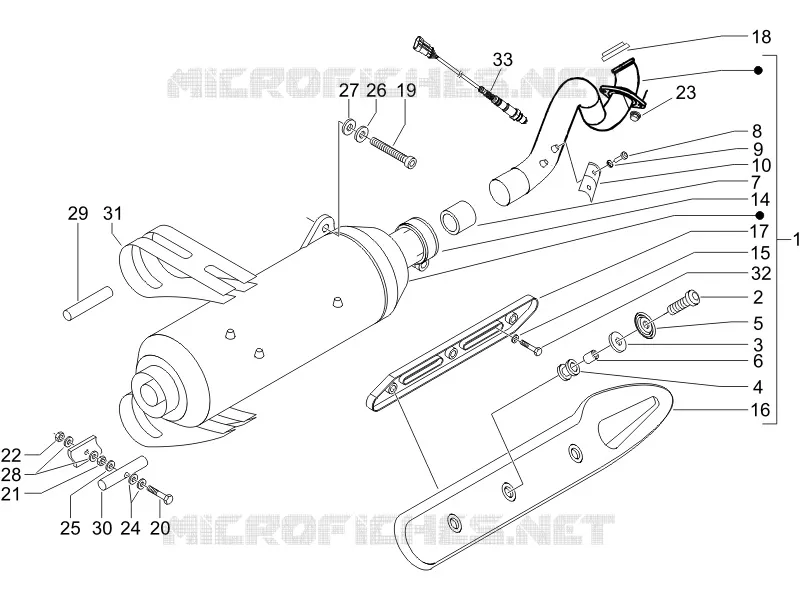

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
