1
Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog

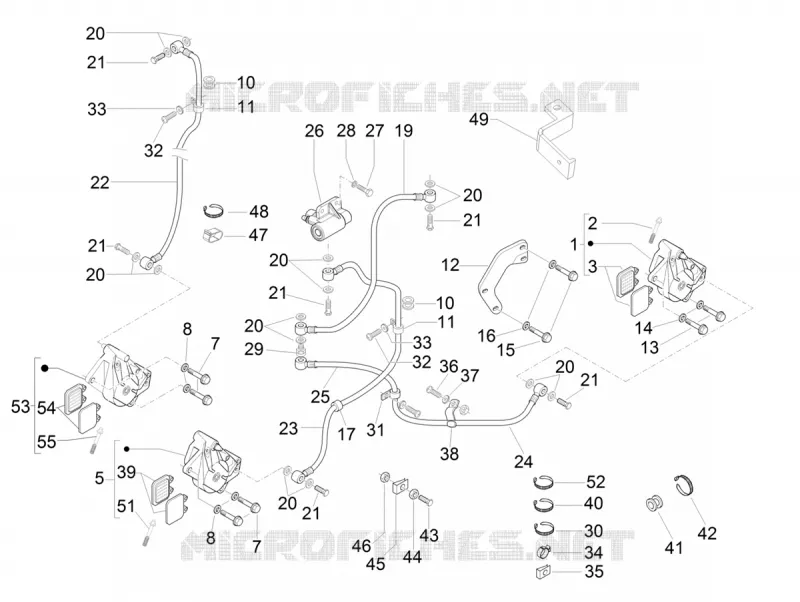

Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Selectors - Switches - Buttons
Brakes pipes - Calipers
1
2
3
5
7
7
8
8
10
10
11
11
12
13
14
15
16
17
19
20
20
20
20
20
20
20
21
21
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
51
52
53
54
55
1
Rear brake caliper (Brembo)
CM067904
Not Available
2
Clip-pin-spring kit
600207
Not Available
3
Brake pads kit (Brembo)
647077
$43,20 Unit Price incl. VAT
5
Brake caliper
CM072501
Not Available
7
screw M8x30
015792
$0,51 Unit Price incl. VAT
8
Spring washer
709047
$0,08 Unit Price incl. VAT
10
Fairlead
230636
$1,60 Unit Price incl. VAT
11
Hose clamp
564836
$2,97 Unit Price incl. VAT
12
Caliper support bracket
598060
Not Available
12
Caliper support bracket
649418
$22,29 Unit Price incl. VAT
13
screw
598919
$2,27 Unit Price incl. VAT
14
Spring washer
709047
$0,08 Unit Price incl. VAT
15
screw
030076
$3,65 Unit Price incl. VAT
16
Brake washer
598833
$3,65 Unit Price incl. VAT
17
Hose clamp
307166
$2,99 Unit Price incl. VAT
19
Brake pipe (valve-pump)
564784
Not Available
20
Gasket
127927
$0,25 Unit Price incl. VAT
21
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
22
BREAK PIPES
599514
$50,04 Unit Price incl. VAT
23
BREAK PIPES
599515
Not Available
24
BREAK PIPES
599545
$28,84 Unit Price incl. VAT
25
Rear brake stiff pipe
600876
$38,27 Unit Price incl. VAT
26
Valve
56122R
$171,53 Unit Price incl. VAT
27
Hex socket screw M6x20
709674
$0,17 Unit Price incl. VAT
28
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
29
Joint
597033
$4,32 Unit Price incl. VAT
30
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
31
Hose clamp
597395
$4,82 Unit Price incl. VAT
32
Hex socket screw M6x16
709099
$0,16 Unit Price incl. VAT
33
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
34
Spring
179013
$0,42 Unit Price incl. VAT
35
Plate
136916
$5,38 Unit Price incl. VAT
36
Screw m6x12
031086
$0,08 Unit Price incl. VAT
37
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
38
Hose clamp
482290
$0,50 Unit Price incl. VAT
39
Brake pads couple
647074
Not Available
40
Support clamp
581767
$0,38 Unit Price incl. VAT
41
Fairlead
563989
$0,32 Unit Price incl. VAT
42
Hose clamp
564835
Not Available
43
screw M6x35
414838
$0,67 Unit Price incl. VAT
44
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
45
Elastic spring
231590
$0,25 Unit Price incl. VAT
46
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
47
Non return spring l=27
CM006904
$0,25 Unit Price incl. VAT
48
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
49
Brake pipe support bracket
599523
Not Available
51
Kit spring/blade
599321
Not Available
52
Hose clamp
269273
$3,65 Unit Price incl. VAT
53
Brake caliper
CM072502
$446,23 Unit Price incl. VAT
54
Brake pads couple
650097
$24,30 Unit Price incl. VAT
55
Kit spring/blade
599321
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
