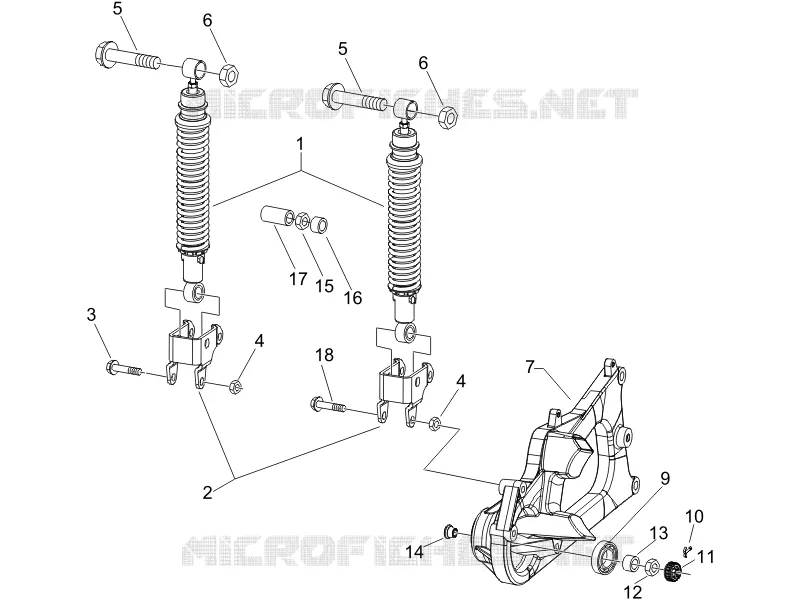

Rear suspension - Shock absorber/s
1
2
3
4
4
5
5
6
6
7
9
10
11
12
13
14
15
16
17
18
1
rear shock for X-9 500
56229R
$116,67 Unit Price incl. VAT
2
Bracket
599559
$7,23 Unit Price incl. VAT
3
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
4
Nut M8
020008
$0,08 Unit Price incl. VAT
5
screw
599564
Not Available
6
Self locking nut M10
232108
Not Available
7
suspension arm X-9
841030
$128,80 Unit Price incl. VAT
9
Ball bearing
82545R
$12,11 Unit Price incl. VAT
10
Split pin
012789
$0,16 Unit Price incl. VAT
11
Nut hold cap
194423
$0,48 Unit Price incl. VAT
12
Nut M16x13
563728
$1,42 Unit Price incl. VAT
13
Spacer
597528
$1,51 Unit Price incl. VAT
14
Wheel spacer
848039
$18,12 Unit Price incl. VAT
15
Self locking nut M10
232108
Not Available
16
Spacer
597178
$3,65 Unit Price incl. VAT
17
Spacer
597179
$3,65 Unit Price incl. VAT
18
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
