Rear suspension - Shock absorber/s for GILERA PIAGGIO VESPA X8 Potenziato from 2006

Fork/steering tube - Steering bearing unit

Rear suspension - Shock absorber/s

1

Rear shock absorber cpl.

56235R

Not Available

2

STAFFA FISS.AMMORTIZZATORE POST.

598938

$7,01 Unit Price incl. VAT

3

RONDELLA PIANA

178790

$0,51 Unit Price incl. VAT

4

VITE FLANGIATA

598838

$1,46 Unit Price incl. VAT

5

plate

599890

Not Available

6

VITE TE PARZ.FIL. M10x45 UNI 5737-65

015578

$2,99 Unit Price incl. VAT

7

DADO M8-6H

020008

$0,08 Unit Price incl. VAT

8

SCREW

436787

Not Available

9

Washer

709646

Not Available

10

VITE T.C.E.I. M8X50

844483

$0,67 Unit Price incl. VAT

11

DISTANZIALE

CM067801

$6,51 Unit Price incl. VAT

12

DISTANZIALE

CM067803

$11,11 Unit Price incl. VAT

13

ANELLO ELASTICO

006416

$0,08 Unit Price incl. VAT

14

DADO AUTOFR. M10-6H CH.17

231370

$0,38 Unit Price incl. VAT

14

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

15

Self locking nut M10

232108

Not Available

16

VITE

271807

$4,41 Unit Price incl. VAT

17

DADO

564611

$3,65 Unit Price incl. VAT

18

DADO FLANG.AUTOFR.TRIB M10 6H CH.15

564878

$2,99 Unit Price incl. VAT

19

VITE TESTA ESAG. PARZIALM. FILETTATO

597080

$6,60 Unit Price incl. VAT

20

VITE TESTA ESAG. PARZIALM. FILETTATO

597081

$5,20 Unit Price incl. VAT

21

MOLLA

597490

$4,82 Unit Price incl. VAT

22

BUSSOLA FILETTATA

597774

$15,31 Unit Price incl. VAT

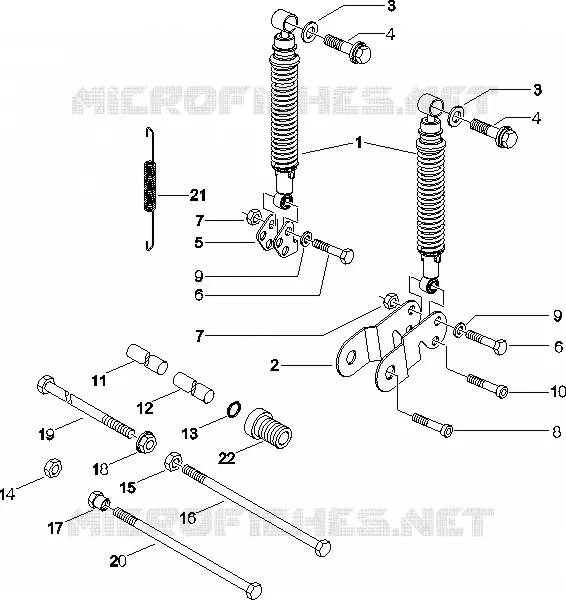

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
