Handlebars coverages for GILERA PIAGGIO VESPA X8 Potenziato from 2006

Handlebars coverages

1

COPRIMANUBRIO ANTERIOR

581494000P

$18,75 Unit Price incl. VAT

2

VITE PER PLASTICHE 4x20

227983

$3,65 Unit Price incl. VAT

3

Rear handlebars cover

598219000P

Not Available

4

Self-tap screw

576189

$0,05 Unit Price incl. VAT

5

VITE AUTOFIL. TBCIC 3,8x16

270793

$0,08 Unit Price incl. VAT

6

PIASTRINA ELASTICA

CM017409

$0,08 Unit Price incl. VAT

7

COPERCHIO POMPA SX.

581497000P

$5,38 Unit Price incl. VAT

8

COPERCHIO POMPA DX.

581496000P

$5,38 Unit Price incl. VAT

9

VITE A TESTA BOMB.ESAG.INCASSATO

581957

$0,16 Unit Price incl. VAT

10

PIASTRINA ELASTICA

CM017418

$3,65 Unit Price incl. VAT

11

UPPER HANDLEBAR LOUVER

599415000P

Not Available

11

Handlebar cover

59941500ED

Not Available

12

VITE AUTOF. D4,2X25

014754

$2,95 Unit Price incl. VAT

13

PIASTRINA ELASTICA

CM017409

$0,08 Unit Price incl. VAT

14

VIT.CIL.BOMB.ES.INC.PS

581175

$0,17 Unit Price incl. VAT

15

PIASTRINA ELASTICA

248419

$0,67 Unit Price incl. VAT

16

CRUSCOTTO

622585000P

$11,93 Unit Price incl. VAT

16

MASCHERA MANUBRIO/CRUSCOTTO

62258500ED

$12,53 Unit Price incl. VAT

17

VITE AUTOF. D4,2X25

014754

$2,95 Unit Price incl. VAT

18

PIASTRINA EL.6,5X11X0

CM017408

$0,25 Unit Price incl. VAT

19

Guard

621496

Not Available

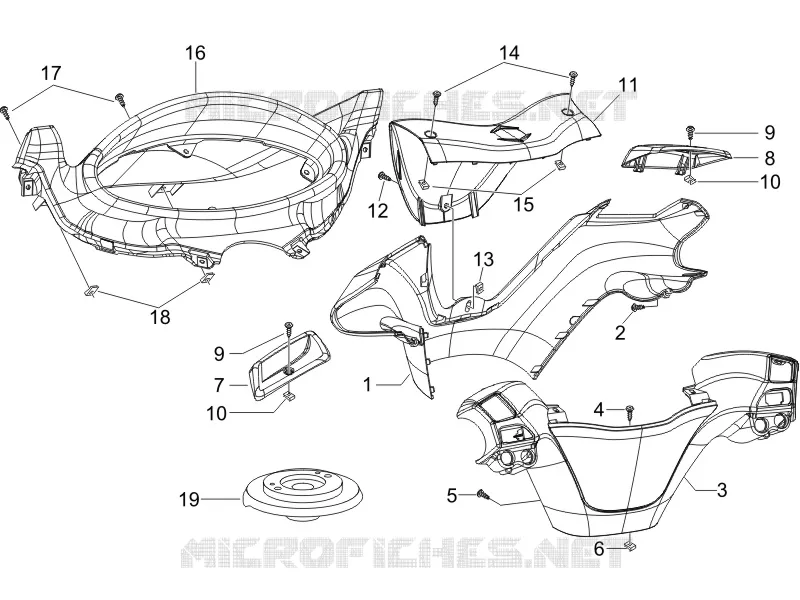

Find the detailed Handlebars coverages GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
