Handlebars - Master cil. for GILERA PIAGGIO VESPA X8 Potenziato from 2006

Handlebars - Master cil.

1

Handlebar

5994065

Not Available

2

RONDELLA ELASTICA PIANA DENT.INTERNA

012543

$0,08 Unit Price incl. VAT

3

ECROU

015330

$0,25 Unit Price incl. VAT

4

RONDELLA PIANA

178790

$0,51 Unit Price incl. VAT

5

VITE A TESTA CILINDRICA ESAGONO INCASS.

655554

$3,70 Unit Price incl. VAT

5

screw

223605

Not Available

6

MOLLETTA ELASTICA

231590

$0,25 Unit Price incl. VAT

7

Hose

CM060951

Not Available

8

COMPLETE THROTTLE CONTROL TRANSMISSION

CM073302

Not Available

9

VITE-BUSSOLA BLOCCAGGIO MANOPOLA

123394

$3,70 Unit Price incl. VAT

10

MANOPOLA SINISTRA

271452

$13,37 Unit Price incl. VAT

11

MANOPOLA DESTRA

271453

$13,37 Unit Price incl. VAT

12

RONDELLA

562923

$2,99 Unit Price incl. VAT

13

Right brake hydraulic pump

CM076305

Not Available

14

LEVA FRENO

600475

$11,82 Unit Price incl. VAT

15

PONTICELLO POMPA FRENO

600476

$11,06 Unit Price incl. VAT

16

POMPA IDR. FRENO SX

CM076307

$202,50 Unit Price incl. VAT

17

LEVA FRENO

600475

$11,82 Unit Price incl. VAT

18

PONTICELLO POMPA FRENO

600476

$11,06 Unit Price incl. VAT

19

TERMINALE DI ESTREMITA

271433

$20,41 Unit Price incl. VAT

20

screw M6x55

271434

Not Available

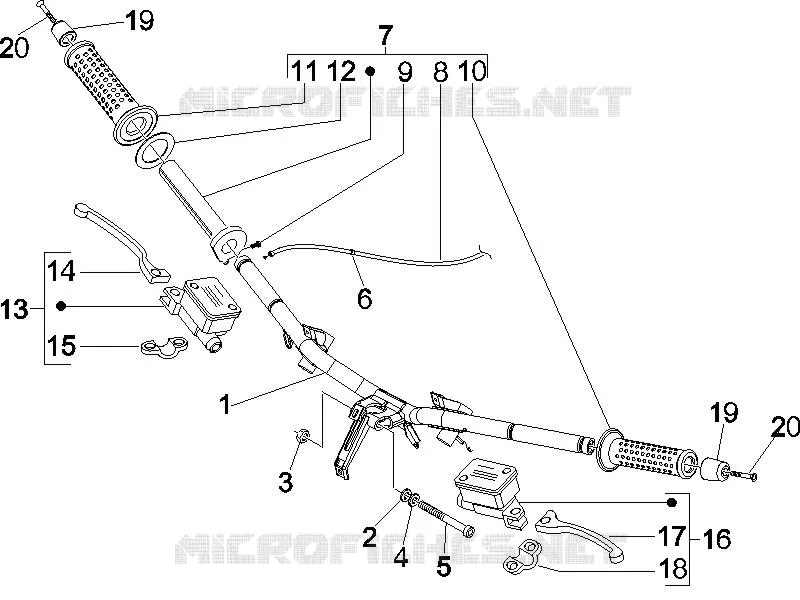

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
