Rear headlamps - Turn signal lamps for GILERA PIAGGIO VESPA X8 Potenziato from 2006

Front headlamps - Turn signal lamps

Remote control switches - Battery - Horn

Rear headlamps - Turn signal lamps

1

FANALE POSTERIORE

584210

$40,22 Unit Price incl. VAT

2

GR.CAVETTI

584982

$15,55 Unit Price incl. VAT

3

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

4

INDICATORE DIREZ. POST. SX

584209

$22,83 Unit Price incl. VAT

5

Lamp 12V-5W

292022

Not Available

6

GR.CAVETTI INDICATORE DIREZIONE

584840

$13,17 Unit Price incl. VAT

7

INDICATORE DIREZ. POST. DX

584268

$22,83 Unit Price incl. VAT

8

Lamp 12V-5W

292022

Not Available

9

GR.CAVETTI INDICATORE DIREZIONE

584840

$13,17 Unit Price incl. VAT

10

RONDELLA PIANA 12x5,2x1

006078

$0,08 Unit Price incl. VAT

11

VITE AUTOF. TCCIC D4,2x13 UNI 947

259349

$0,17 Unit Price incl. VAT

12

Number plate lamp

584272

Not Available

13

Lamp 12V-5W

292022

Not Available

14

PORTALAMPADA

584841

$7,94 Unit Price incl. VAT

15

VITE AUTOFILETTANTE PER MATERIE PLAST.

268596

$0,08 Unit Price incl. VAT

16

LAMPADA A BULBO 12V-10

181746

$3,28 Unit Price incl. VAT

17

LAMP 12V - 3W ALL-GLAS

294131

$5,07 Unit Price incl. VAT

18

VITE

018536

$0,08 Unit Price incl. VAT

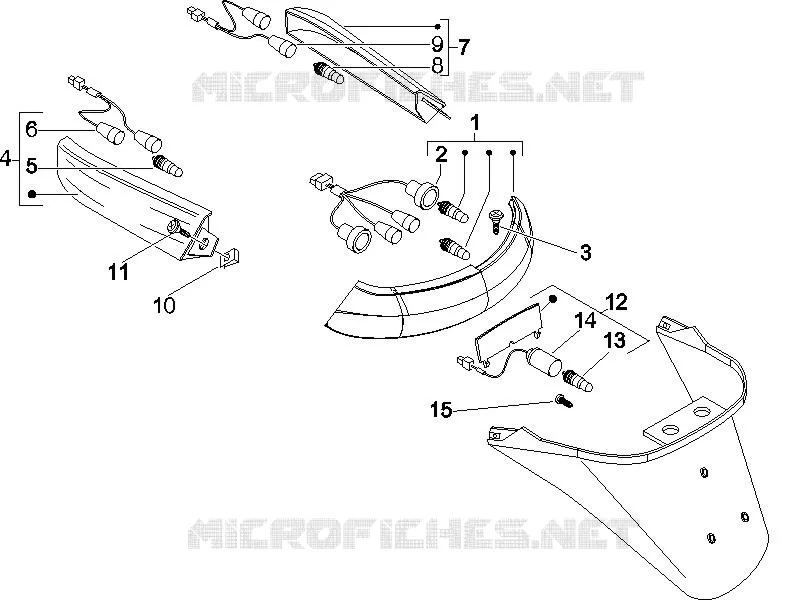

Find the detailed Rear headlamps - Turn signal lamps GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
