Parts Catalog

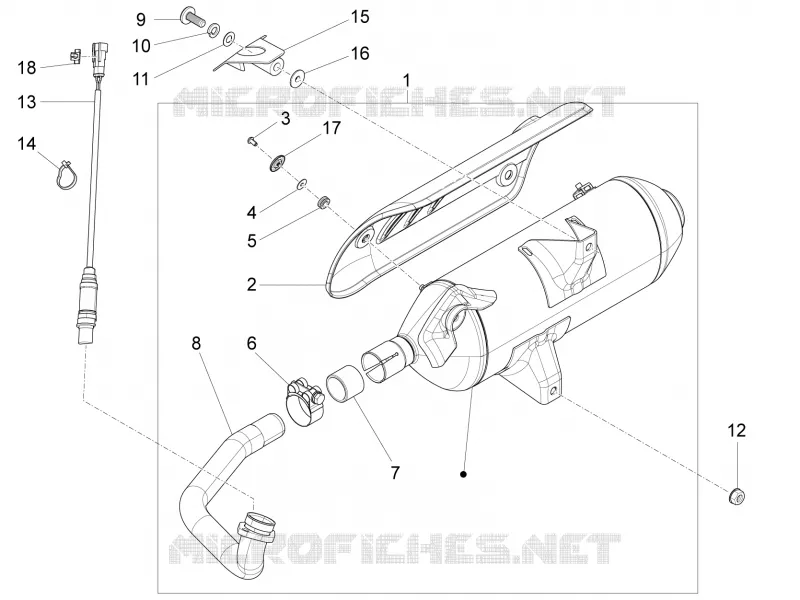

Silencer
6
Parts Diagram
Parts Catalog
Front covers - Mudflaps
by
Head unit - Valve
Silencer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Silencer complete with protection
B0153485
$558,62 Unit Price incl. VAT
2
Protection
877076
$16,09 Unit Price incl. VAT
3
screw M5x10
842908
Not Available
4
Flat washer
827526
$0,25 Unit Price incl. VAT
5
Fairlead
487665
$0,84 Unit Price incl. VAT
6
Hose clamp
82789R
Not Available
7
Graphite bushing
8263885
$36,93 Unit Price incl. VAT
8
Exhaust manifold
B016086
$54,38 Unit Price incl. VAT
9
Hex screw M8x30
599208
$0,62 Unit Price incl. VAT
10
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
11
Flat washer 19,3x8,2x2,5
848452
$0,84 Unit Price incl. VAT
12
Nut
436947
$0,42 Unit Price incl. VAT
13
Lamda sensor
639806
Not Available
14
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
15
Cover
AP8119925
$6,30 Unit Price incl. VAT
16
Spacer
873450
$3,65 Unit Price incl. VAT
17
Bowl
482282
$4,82 Unit Price incl. VAT
18
Spring for connector
639560
$0,67 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
