Parts Catalog
Rocking levers support unit
6

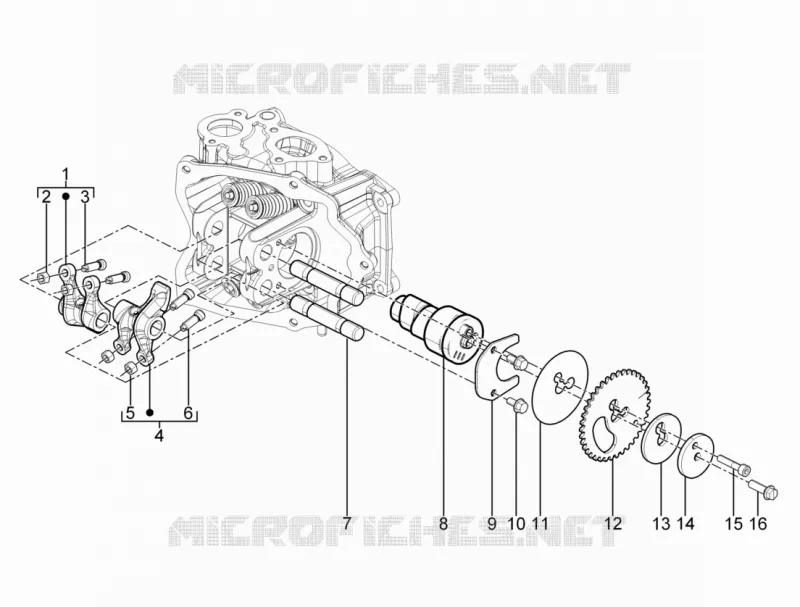

Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Helmet huosing - Undersaddle
Rocking levers support unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Intake rocker with roller
B019352
$167,84 Unit Price incl. VAT
1
Intake rocker with shoe
B0184835
Not Available
2
Rocker arm adjuster nut
879916
$3,65 Unit Price incl. VAT
2
Nut
484819
$0,24 Unit Price incl. VAT
3
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
4
Exhaust rocker with shoe
B0184845
Not Available
4
Exhaust rocker with roller
B019354
$167,84 Unit Price incl. VAT
5
Rocker arm adjuster nut
879916
$3,65 Unit Price incl. VAT
5
Nut
484819
$0,24 Unit Price incl. VAT
6
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
7
Rocker arms axis
486343
$2,77 Unit Price incl. VAT
8
Camshaft
8751215
$95,15 Unit Price incl. VAT
8
Camshaft
1A000610R5
$86,24 Unit Price incl. VAT
9
Camshaft plate
877309
$1,41 Unit Price incl. VAT
10
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
11
Washer
877310
$3,65 Unit Price incl. VAT
11
Washer
487832
Not Available
12
Timing system gear
B014970
$12,11 Unit Price incl. VAT
13
Plain washer
830447
$1,10 Unit Price incl. VAT
14
Plain washer
830446
$1,25 Unit Price incl. VAT
15
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
16
Hex socket screw M5x25
486972
$0,09 Unit Price incl. VAT
