Engine displacement
125
2
Model
X10
3
Year
2015
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Main cable harness
6
Parts Diagram
Parts Catalog
Driving pulley
by
Front glove-box - Knee-guard panel
Main cable harness
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
ABS frame cable assembly
643406
$549,05 Unit Price incl. VAT
1
Frame harness
643210
$452,63 Unit Price incl. VAT
2
Mini fuse 10A
CM080906
$1,09 Unit Price incl. VAT
3
Mini fuse 7,5A
CM080905
$0,25 Unit Price incl. VAT
4
Mini fuse 5A
CM080904
$1,09 Unit Price incl. VAT
5
Mini fuse 3A
CM080902
$0,58 Unit Price incl. VAT
6
Mini fuse 15A
CM080907
$1,09 Unit Price incl. VAT
7
Plug connect diagnos ECU
582928
$1,01 Unit Price incl. VAT
8
Cap
292577
Not Available
9
Cap
581061
$1,37 Unit Price incl. VAT
10
Cap
583971
$0,59 Unit Price incl. VAT
11
Maintenance
584002
$1,77 Unit Price incl. VAT
12
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
13
Spring
641652
$0,34 Unit Price incl. VAT
14
Spring for connector
639560
$0,67 Unit Price incl. VAT
15
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
16
Non return spring l=27
CM006904
$0,25 Unit Price incl. VAT
16
Non return spring L=33
CM006906
$1,26 Unit Price incl. VAT
17
Pipes/cables retainer spring L=16
CM006907
$1,51 Unit Price incl. VAT
18
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
19
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
20
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
21
Hose clamp
D9004461193
$5,38 Unit Price incl. VAT
22
Socket USB
643277
Not Available
23
Fairlead
643310
$1,02 Unit Price incl. VAT
24
Spring for connector
641769
$2,27 Unit Price incl. VAT
25
LV socket 12V
294770
$17,07 Unit Price incl. VAT
26
Speed sensor cable assembly
643276
$13,69 Unit Price incl. VAT
27
Ambient temperature sensor
581142
Not Available
28
Hose clamp
643413
$3,65 Unit Price incl. VAT
29
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
30
screw
581596
$0,07 Unit Price incl. VAT
31
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
32
Fuse 40A
640394
$0,19 Unit Price incl. VAT
33
Cover
290404
$0,42 Unit Price incl. VAT
34
Fuse 30A
581440
Not Available
35
Spring
642552
$0,76 Unit Price incl. VAT

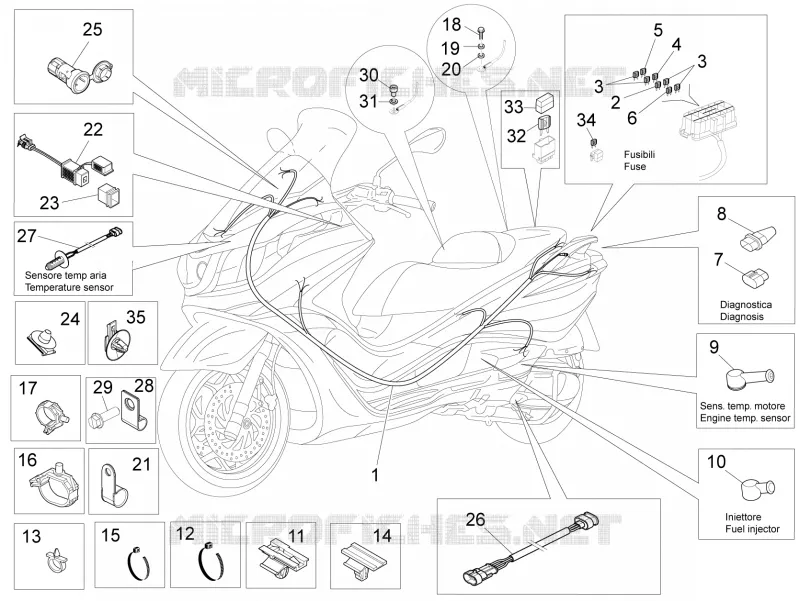

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
