Parts Catalog
Air filter
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Cylinder-piston-wrist pin unit
Air filter
6
6
7
7
8
9
10
11
12
13
14
15
15
16
16
17
18
19
4
3
2
1
5
1
Complete air cleaner box
B017213
$77,53 Unit Price incl. VAT
2
Air filter
829258
Not Available
3
Filter cover gasket
829259
$14,30 Unit Price incl. VAT
4
Air cleaner/vehicle sleeve
845996
$42,72 Unit Price incl. VAT
5
Hose clip 35-33
830015
Not Available
6
Cap
827831
$2,60 Unit Price incl. VAT
7
Hose clamp
CM002910
$0,59 Unit Price incl. VAT
8
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
9
Intake hose
876317
$9,90 Unit Price incl. VAT
10
Knurled bushing
830056
$0,34 Unit Price incl. VAT
11
Bushing
830057
$1,01 Unit Price incl. VAT
12
Hose clamp
260918
$1,68 Unit Price incl. VAT
13
screw M6x40
272624
Not Available
14
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
15
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
16
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
17
Spring plate M6
254485
$0,34 Unit Price incl. VAT
18
Screw m6x55
259988
$3,65 Unit Price incl. VAT
19
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT

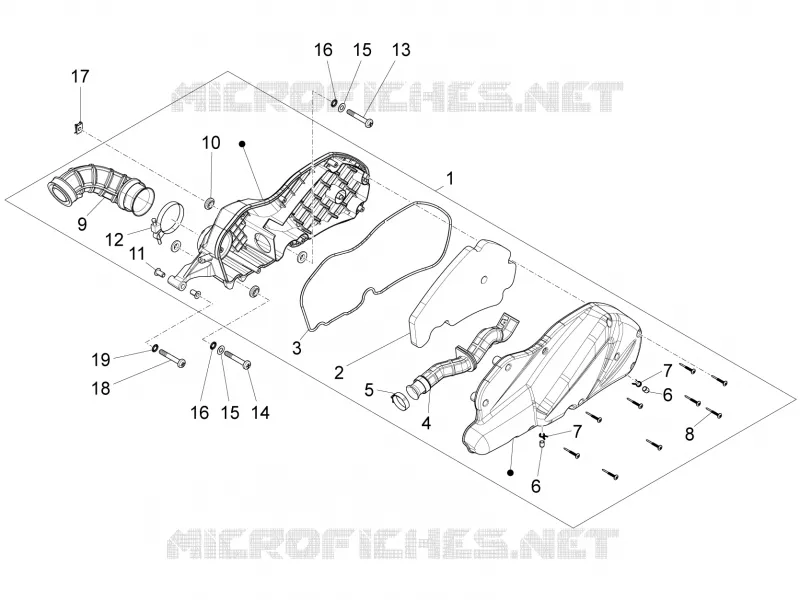

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
