Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

Supply system

COOLING SYSTEM FOR PIAGGIO BV ST 4T 4V IE E4 ABS 2017

Wheel huosing - Mudguard

Item numbers

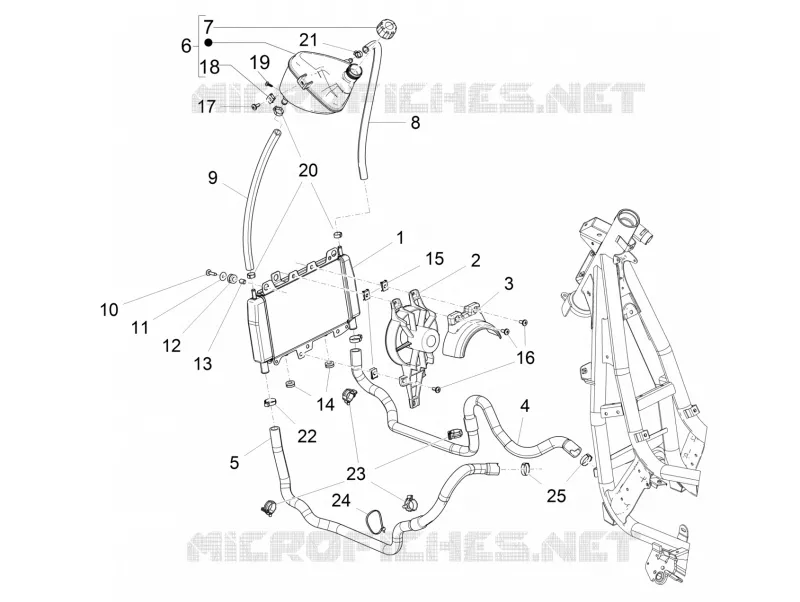

Cooling system PIAGGIO PIAGGIO-SCOOTER 350 BV 2017 BV ST 4T 4V ie E4 ABS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
WATER COOLER

656528  

Unit Price

2
ELECTRIC FAN ASSY.

58211R  

Unit Price

3
FAN SHROUD

672464  

Unit Price

4
PUMP-RADIATOR PIPE FITTING

674873  

Unit Price

5
PUMP-RADIATOR PIPE FITTING

673127  

Contact
6
COOLANT TANK

656807  

Unit Price

7
EXPANSION TANK PLUG

623673  

Unit Price

8
COOLER-TANK RETURN PIPE

CM007017  

Unit Price

9
WATER RAD.FEED PIPE

CM007018  

Unit Price

10
SCREW M6X25

CM179305  

Unit Price

11
WASHER D6, 2X20X1

013092  

Unit Price

12
UPPER RUBBER

351782  

Unit Price

13
SPACER

273288  

Unit Price

14
LOWER RUBBER

258904  

Unit Price

15
SPRING PLATE M6

254485  

Unit Price

16
SCREW M6X25

CM179305  

Unit Price

17
SCREW M6X16

CM179301  

Unit Price

18
SPRING PLATE M6

254485  

Unit Price

19
SELF TAPPING SCREW D4X16

CM180701  

Unit Price

20
HOSE CLAMP

CM001902  

Contact
21
HOSE CLAMP

CM001904  

Unit Price

22
HOSE CLAMP

CM001909  

Unit Price

23
PIPES/CABLES RETAINER SPRING

CM006903  

Unit Price

24
LOCK-STRAP L=277

257134  

Unit Price

25
HOSE CLAMP

CM001922  

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from PIAGGIO. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the Cooling system of your PIAGGIO BV ST 4T 4V ie E4 ABS of BV. Let us know if you have any questions.

Genuine parts for PIAGGIO BV ST 4T 4V ie E4 ABS 2017

Engine Frame - Plastic parts - Coachwork Handlebars/Steering Suspensions - Wheels Braking system - Transmissions Electrical system

PIAGGIO BV ST 4T 4V ie E4 ABS 2017

Choose the exact model of your PIAGGIO BV 350 to access the different categories of genuine spare parts

350 BV 2017 BV ST 4T 4V ie E4 ABS

BV ST 4T 4V ie E4 ABS

PIAGGIO-SCOOTER BV

Displacement: 350 cc
Year: 2017
