1
Engine displacement
150
2
Model
MEDLEY
3
Year
2017
4
Trim
Medley 4T ie ABS
5
Parts Catalog

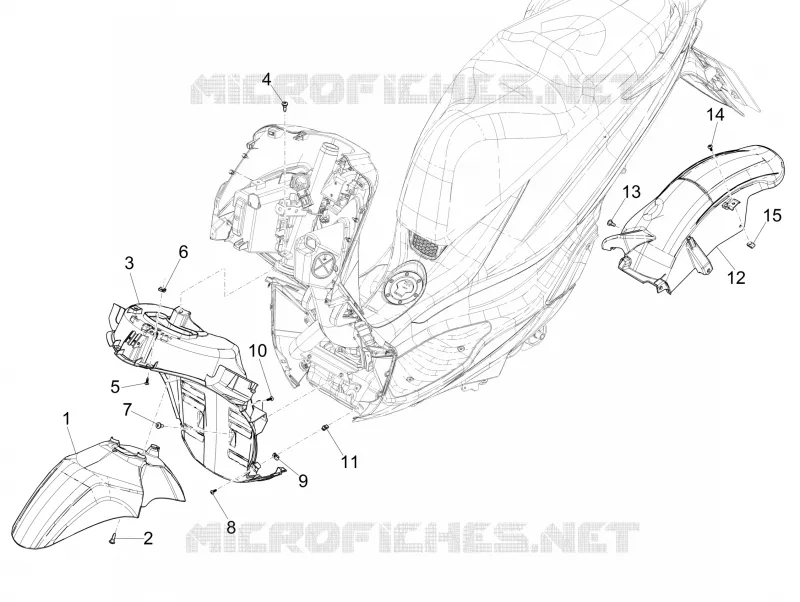

Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Stand/s
by
Cdi magneto assy
Wheel huosing - Mudguard
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
1
Garde-boue avant
1B001676000S7
Not Available
1
Garde-boue avant
1B001676000D05
Not Available
1
Garde-boue avant
1B001676000BR
$63,95 Unit Price incl. VAT
1
Garde-boue avant
1B001676000DU
$82,68 Unit Price incl. VAT
1
Garde-boue avant
1B001676000S5
Not Available
1
Garde-boue avant
1B001676600BT
$78,90 Unit Price incl. VAT
1
Garde-boue avant
1B001676000NS
Not Available
1
Garde-boue avant
1B001676000EZ
$64,22 Unit Price incl. VAT
1
Garde-boue avant
1B001676000DE
Not Available
1
Garde-boue avant
1B001676000HR
$57,98 Unit Price incl. VAT
1
Garde-boue avant
1B001676000HI
Not Available
1
Garde-boue avant
1B001676000ND
Not Available
1
Garde-boue avant
1B001676000VT
Not Available
1
Garde-boue avant
1B001676
$23,16 Unit Price incl. VAT
2
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
3
Compart.roue
1B006931
$23,10 Unit Price incl. VAT
4
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
5
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
6
Spring plate
CM017410
$0,34 Unit Price incl. VAT
7
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
8
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
9
Spring plate
CM017410
$0,34 Unit Price incl. VAT
10
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
11
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
12
Garde-boue Ar.
1B001867
$9,42 Unit Price incl. VAT
13
screw
CM179202
$0,25 Unit Price incl. VAT
14
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
15
Spring plate
CM017410
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
