1
Engine displacement
150
2
Model
MEDLEY
3
Year
2017
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Cooling system
6

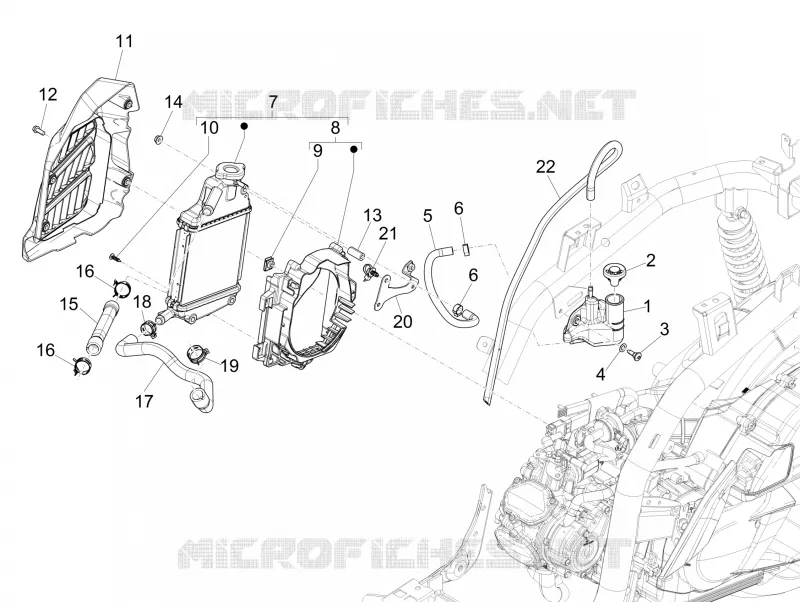

Parts Diagram
Parts Catalog
Cylinder head cover
by
Tank
Cooling system
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
1
Réservoir d'expansion
1B002267
$19,79 Unit Price incl. VAT
2
Bouchon
1B002766
$1,70 Unit Price incl. VAT
3
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
4
Spring washer
709047
$0,08 Unit Price incl. VAT
5
Cooling tube L=280
CM278701
$1,48 Unit Price incl. VAT
6
Hose clamp
CM001901
$0,76 Unit Price incl. VAT
7
Water cooler
1A006161
Not Available
7
Water cooler
1A008047
Not Available
8
Air duct
1A005671
Not Available
9
Spring plate
1A003988
$1,81 Unit Price incl. VAT
10
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
11
Protection du radiateur
1A006626
$13,25 Unit Price incl. VAT
12
Screw w/ flange M6x16
1A006359
$2,20 Unit Price incl. VAT
13
Spacer
1A001859
$0,94 Unit Price incl. VAT
14
Flanged nut
874558
$0,09 Unit Price incl. VAT
15
Water cooler-head tube
1A006075
$4,98 Unit Price incl. VAT
16
Hose clamp
CM226910
$2,86 Unit Price incl. VAT
17
Water cooler-pump tube
1A006076
$8,10 Unit Price incl. VAT
18
Spring clamp 22/12
CM226903
$3,65 Unit Price incl. VAT
19
Hose clamp
CM226911
$3,28 Unit Price incl. VAT
20
Rod
1A006358
$1,86 Unit Price incl. VAT
21
Wiring clip
1D001143
$0,34 Unit Price incl. VAT
22
Fuel breather pipe
CM001433
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
