Engine displacement
150
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
HEADLIGHT - INDICATORS
by
FLYWHEEL COVER - OIL FILTER
Front shield
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
3
4
4
4
4
5
6
7
8
8
9
10
11
11
11
11
12
12
12
12
13
13
14
14
15
15
16
16
17
18
18
19
20
21
22
1
Tablier Av.
1B003745000HI
Not Available
1
Tablier Av.
1B003745000BR
$101,78 Unit Price incl. VAT
1
Tablier Av.
1B003745000DE
$115,58 Unit Price incl. VAT
1
Tablier Av.
1B003745000VL
Not Available
1
Tablier Av.
1B003745000DU
Not Available
1
Tablier Av.
1B003745000NS
Not Available
1
Tablier Av.
1B003745000D05
Not Available
1
Tablier Av.
1B003745000S5
Not Available
1
Tablier Av.
1B003745000S7
Not Available
1
Tablier Av.
1B003745000EZ
$102,11 Unit Price incl. VAT
1
Tablier Av.
1B003745000R7
$111,91 Unit Price incl. VAT
1
Tablier Av.
1B003745000ND
Not Available
1
Tablier Av.
1B003745000HR
Not Available
1
Tablier Av.
1B003745
$19,87 Unit Price incl. VAT
1
Tablier Av.
1B003745000BT
Not Available
1
Tablier Av.
1B003745000VT
Not Available
2
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Cache-direction
1B00568500090
Not Available
4
Cache-direction
1B001677
$25,18 Unit Price incl. VAT
4
Cache-direction
1B005685
$6,02 Unit Price incl. VAT
4
Cache-direction
1B003735
$28,96 Unit Price incl. VAT
5
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
6
Spring plate
CM017410
$0,34 Unit Price incl. VAT
7
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
8
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
9
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
10
Expansion plug
157716
$0,08 Unit Price incl. VAT
11
Blocage avt. G.
1B003746000HO
$40,02 Unit Price incl. VAT
11
Blocage avt. G.
1B00374600090
$22,78 Unit Price incl. VAT
11
Blocage avt. G.
1B003746000H4
$39,04 Unit Price incl. VAT
11
Blocage avt. G.
1B003746
$5,69 Unit Price incl. VAT
12
Fermeture tablier avt. D.
1B003747000HO
$40,02 Unit Price incl. VAT
12
Fermeture tablier avt. D.
1B00374700090
Not Available
12
Fermeture tablier avt. D.
1B003747
$5,97 Unit Price incl. VAT
12
Fermeture tablier avt. D.
1B003747000H4
$21,95 Unit Price incl. VAT
13
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
14
Expansion plug
157716
$0,08 Unit Price incl. VAT
15
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
16
Spring plate
CM017410
$0,34 Unit Price incl. VAT
17
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
18
Cache-direction
5A000597
$13,80 Unit Price incl. VAT
18
Cache-direction
5A000630
$15,88 Unit Price incl. VAT
19
Support plaque d'immatriculation avant
5A000595
$2,46 Unit Price incl. VAT
20
Support plaque im.
5A000596
$0,71 Unit Price incl. VAT
21
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
22
Nut
709116
$0,59 Unit Price incl. VAT

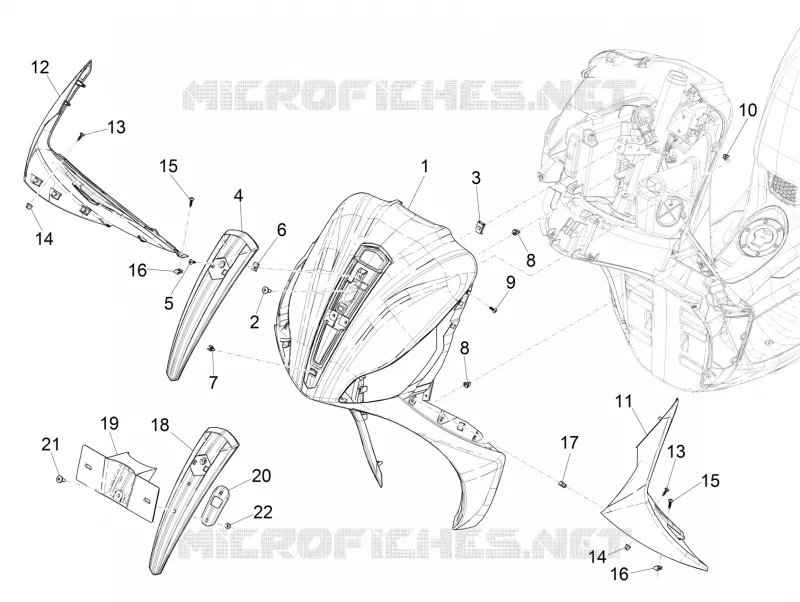

Find the detailed Front shield GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
