Engine displacement
150
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
STICKERS - LABELS
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
1
Oil pump assembly
1A004884
$17,96 Unit Price incl. VAT
2
Oil pump/crankcase gasket
B015460
$0,50 Unit Price incl. VAT
3
Screw w/ flange M5x35
B015992
Not Available
4
Oil pump gear
287913
$6,47 Unit Price incl. VAT
5
Screw w/ flange M6x14
1A000323
Not Available
6
Belleville spring
B015991
$0,34 Unit Price incl. VAT
7
Oil pump chain
B015459
$4,54 Unit Price incl. VAT
8
Oil pump control pinion
82783R
$7,99 Unit Price incl. VAT
9
O-Ring seal ring
B015451
$0,50 Unit Price incl. VAT
10
Oil seal washer
B015450
$3,65 Unit Price incl. VAT
11
Timing chain pinion
82782R
$7,06 Unit Price incl. VAT
12
Chain tensioner rod
1A006293
$13,53 Unit Price incl. VAT
13
Screw w/ flange M6x25
1A000350
$2,25 Unit Price incl. VAT
14
Chain tensioner rod spacer
B015445
$0,76 Unit Price incl. VAT
15
Camshaft chain
1A003584
Not Available
16
Chain tensioner sliding block
1A006294
$8,31 Unit Price incl. VAT
17
Couvercle distribution cpl.
B015415
Not Available
18
Oil pump chain drift
434345
$2,77 Unit Price incl. VAT
19
O-Ring seal ring
B015449
$4,96 Unit Price incl. VAT
20
Gasket ring 24.35.7
1A005743
$10,42 Unit Price incl. VAT
21
Hex socket screw M5x14
B016455
$0,34 Unit Price incl. VAT
22
Flat washer
B015975
Not Available
23
Pan oil
B013437
$22,19 Unit Price incl. VAT
24
Screw w/ flange M6x30
1A000317
Not Available
25
Sump gasket
B014152
$2,02 Unit Price incl. VAT
26
Locating dowel
B015951
Not Available
26
Joint de tendeur de chaîne/cylindre
1A020205
$0,39 Unit Price incl. VAT
27
Tendeur de chaîne complet
1A018752
$21,58 Unit Price incl. VAT
27
Support tendeur de chaîne
1A019253
$22,87 Unit Price incl. VAT
28
Joint de tendeur de chaîne/cylindre
1A015954
$1,17 Unit Price incl. VAT
29
Screw w/ flange M6x16
1A000315
Not Available

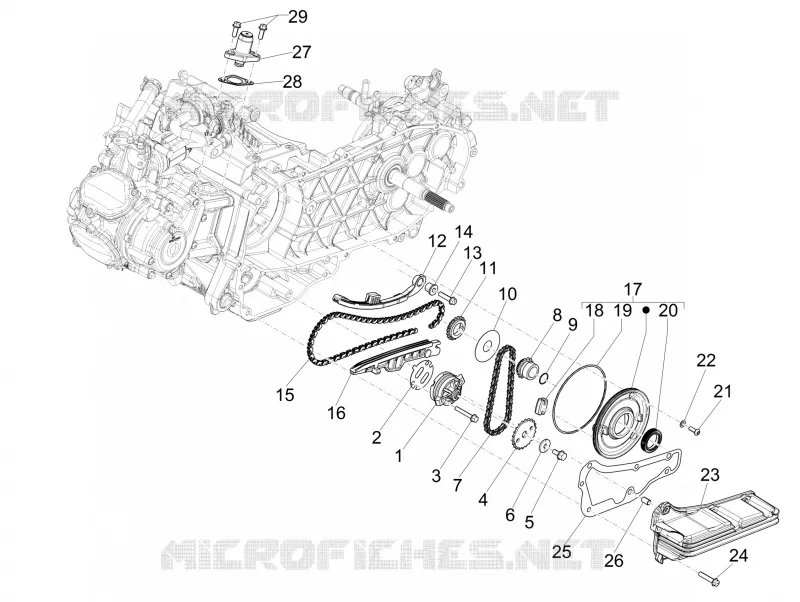

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
