Engine displacement
150
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Stand/s
by
Helmet huosing - Undersaddle
Rear suspension - Shock absorber/s
1
1
1
1
2
2
3
3
4
4
5
6
6
7
7
8
9
10
11
11
12
13
14
15
1
Amortisseur arrière complet
1C003218
Not Available
1
Amortisseur arrière complet
1C000960
Not Available
2
Vis à tête hexagonale M10x55
030100
Not Available
3
Washer
709646
Not Available
4
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
5
Support amortisseur G.
1C002251
$5,53 Unit Price incl. VAT
6
screw M10x40
030097
$3,65 Unit Price incl. VAT
7
Washer
709646
Not Available
8
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
9
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
10
Self locking nut M8
195483
Not Available
11
Support amortisseur D.
1C000963
$4,66 Unit Price incl. VAT
11
Support amortisseur D.
1C002584
$4,33 Unit Price incl. VAT
12
screw
030074
$3,65 Unit Price incl. VAT
13
Spring washer
709047
$0,08 Unit Price incl. VAT
14
Protection disque
1B003892
$2,52 Unit Price incl. VAT
15
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT

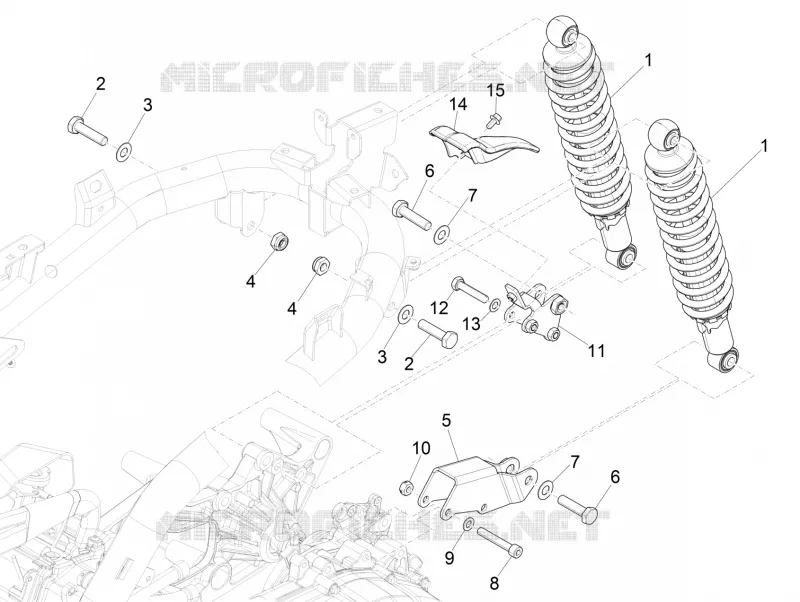

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
