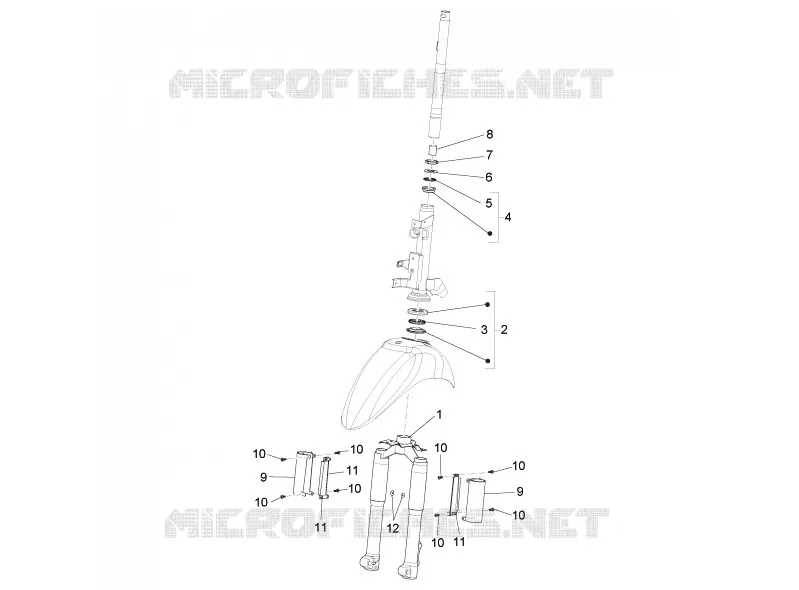

Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
9
10
10
10
10
10
10
10
10
11
11
11
12
1
Front fork assembly
58501R
$251,51 Unit Price incl. VAT
2
Lower steering bearing
6500754
Not Available
2
Lower steering bearing
CM061304
Not Available
2
Lower steering bearing
650075
Not Available
3
Missing description
000000
Not Available
4
Upper thrust ring
CM061303
$65,02 Unit Price incl. VAT
4
Upper thrust ring
6506934
Not Available
4
Upper thrust ring
650693
Not Available
5
Missing description
000000
Not Available
6
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
7
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
8
Cover
601026
$0,84 Unit Price incl. VAT
9
Sleeve
651484
$14,08 Unit Price incl. VAT
10
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
11
Spacer for sleeve
651463
$7,16 Unit Price incl. VAT
12
Gasket
654445
$4,82 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
