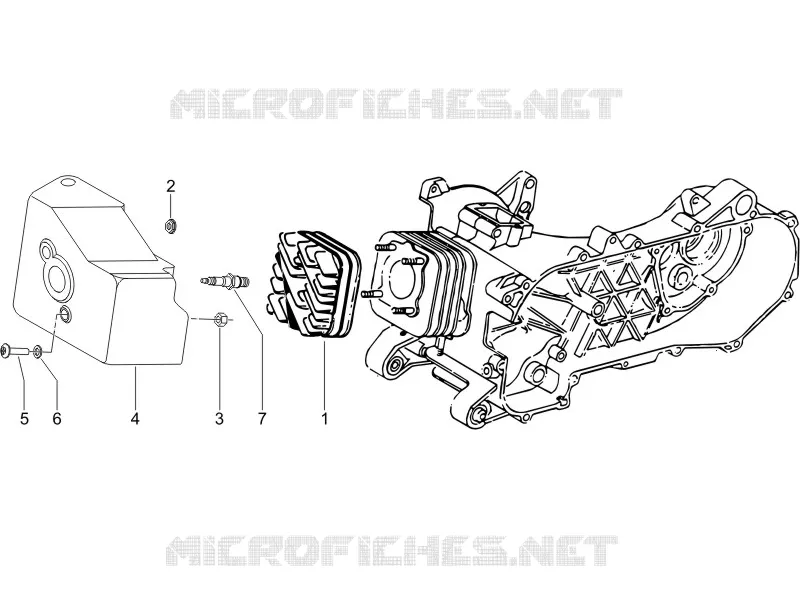

Cylinder head cover
1
2
3
4
5
6
7
1
Cylinder head
286534
Not Available
2
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
3
Spacer nut M6
288531
$1,06 Unit Price incl. VAT
4
Cylinder air shroud
845692
$7,93 Unit Price incl. VAT
5
screw M6x14
008375
$1,55 Unit Price incl. VAT
6
Washer
078307
$0,17 Unit Price incl. VAT
7
Spark plug
829920
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
