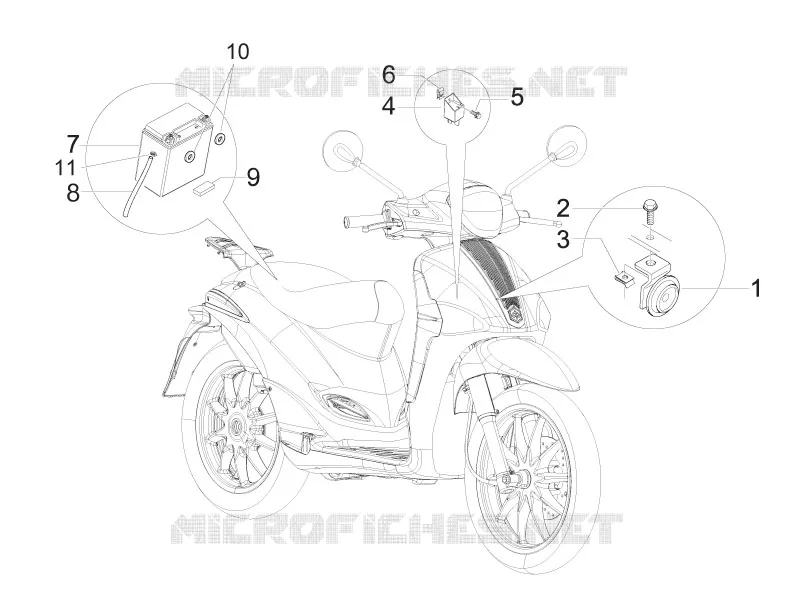

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
1
Horn
58033R
Not Available
2
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
5
Screw w/ flange
436788
Not Available
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Battery 12V-4Ah
234390
$79,65 Unit Price incl. VAT
8
Breather pipe
294485
$5,38 Unit Price incl. VAT
9
Pad
258737
Not Available
10
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
11
Hose clamp
639082
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
