Parts Catalog

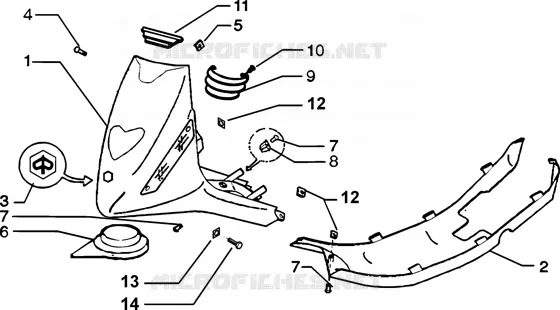

Shield-Spoiler
6
Parts Diagram
Parts Catalog
Engine
by
Front glove compartment-Footboard
Shield-Spoiler
1
2
3
4
5
6
7
7
7
8
9
10
11
12
12
13
14
1
Front shield
5757095090
Not Available
1
shield
57570950E1
Not Available
1
Front shield
5757095087
Not Available
1
shield
57570950GB
Not Available
2
Spoiler
5754020090
Not Available
3
Piaggio logo clip-on badge
574771
$4,32 Unit Price incl. VAT
4
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Covers
575804
Not Available
7
Self-tap screw
576189
$0,05 Unit Price incl. VAT
8
Expansion plug
199190
$2,95 Unit Price incl. VAT
9
Water cooler grille
577028
$7,70 Unit Price incl. VAT
10
Self tapping screw
297498
$0,08 Unit Price incl. VAT
11
Upper grill
575805
$9,59 Unit Price incl. VAT
12
Spring plate
184142
Not Available
13
Spring plate
266005
Not Available
14
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
