1
Engine displacement
50
2
Model
ZIP
3
Year
0
4
Trim
Zip SP H2O
5
Parts Catalog
Handlebars covers
6
Parts Diagram
Parts Catalog
Brake caliper - Brake disc
by
Handlebars component parts

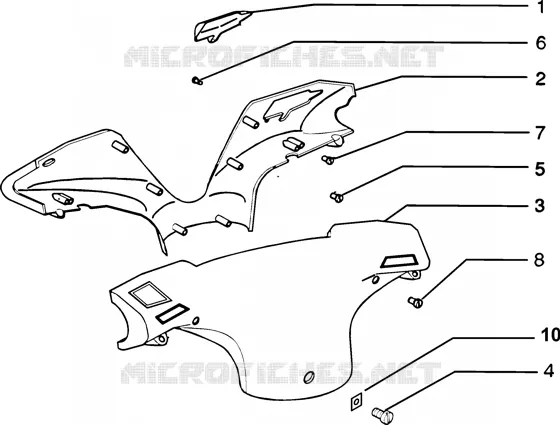

Handlebars covers
1
2
3
4
5
6
7
8
10
1
Brake pump cover
5824190090
Not Available
2
Front handlebars cover
5993170090
Not Available
2
Handlebar cover
5813220090
Not Available
3
Handlebar cover
5813230090
Not Available
4
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
5
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
6
Self tapping screw
297498
$0,08 Unit Price incl. VAT
7
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
8
Self tapping screw L=35 mm
296458
$2,25 Unit Price incl. VAT
10
Spring plate
185802
$5,38 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
