1
Engine displacement
50
2
Model
ZIP
3
Year
0
4
Trim
Zip SP H2O
5
Parts Catalog

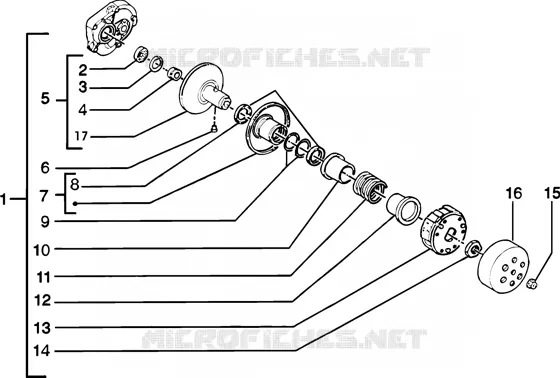

Driven pulley
6
Parts Diagram
Parts Catalog
Transmission cover
by
Driving pulley
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Secondary pulley
CM100109
$257,85 Unit Price incl. VAT
2
Bearing
289953
Not Available
3
Ring
006624
$2,99 Unit Price incl. VAT
4
Roller cage
289952
$5,97 Unit Price incl. VAT
5
Complete fixed secondary pulley
4795526
$162,29 Unit Price incl. VAT
6
Pin
482766
$3,70 Unit Price incl. VAT
7
Complete movable secondary pulley
827893
$94,53 Unit Price incl. VAT
8
Gasket ring
289950
$9,17 Unit Price incl. VAT
9
Gasket
289840
$1,26 Unit Price incl. VAT
10
Pulley side cap
483443
$3,70 Unit Price incl. VAT
11
Variator spring
478028
$17,60 Unit Price incl. VAT
12
Clutch side cap
487935
$20,91 Unit Price incl. VAT
13
Centrifugal clutch assy
CM1002045
$71,55 Unit Price incl. VAT
14
Ring nut
289955
$8,58 Unit Price incl. VAT
15
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT
16
Clutch drum
289933
$43,84 Unit Price incl. VAT
17
Variator spring
478028
$17,60 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
