1
Engine displacement
500
2
Model
X9
3
Year
0
4
Trim
X9 Evolution (ABS)
5
Parts Catalog

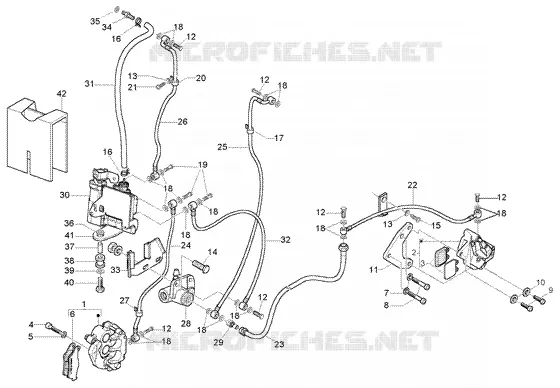

Brake pipes-brake calipers (ABS)
6
Parts Diagram
Parts Catalog
Handlebar-brake pump
by
Brake pipes-brake calipers
Brake pipes-brake calipers (ABS)
1
4
5
6
7
8
9
10
10
11
12
12
12
12
12
12
13
13
14
15
16
17
18
18
18
18
18
18
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
Brake caliper
CM072504
Not Available
2
Brake caliper
CM067906
Not Available
3
Brake pads kit
497394
Not Available
4
screw M8x30
015792
$0,51 Unit Price incl. VAT
5
Spring washer
709047
$0,08 Unit Price incl. VAT
6
Brake pads kit
497396
Not Available
7
Spring washer
709047
$0,08 Unit Price incl. VAT
8
Screw m8x50
432334
$3,65 Unit Price incl. VAT
8
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
9
screw
598919
$2,27 Unit Price incl. VAT
10
Spring washer
709047
$0,08 Unit Price incl. VAT
11
Caliper support bracket
598060
Not Available
12
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
13
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
14
screw
812592
Not Available
15
screw M6x35
414838
$0,67 Unit Price incl. VAT
16
Hose clamp
CM002903
$2,95 Unit Price incl. VAT
17
Hose clamp
597395
$4,82 Unit Price incl. VAT
18
Gasket
127927
$0,25 Unit Price incl. VAT
19
Screw
600256
$1,44 Unit Price incl. VAT
20
Fairlead
274350
Not Available
21
Hex socket screw
122675
$2,99 Unit Price incl. VAT
22
BREAK PIPES
599554
Not Available
23
BREAK PIPES
599545
$28,84 Unit Price incl. VAT
24
BREAK PIPES
600341
Not Available
25
Brake pipe (valve-pump)
564784
Not Available
26
BREAK PIPES
600342
Not Available
27
Hose clamp
482290
$0,50 Unit Price incl. VAT
28
Valve
599696
Not Available
29
Joint
597033
$4,32 Unit Price incl. VAT
30
Device
599682
Not Available
31
Oil pipe
599920
Not Available
32
BREAK PIPES
600400
Not Available
33
Bracket
600754
Not Available
34
Joint
600164
Not Available
35
Washer
600165
$0,12 Unit Price incl. VAT
36
Washer
013776
$0,34 Unit Price incl. VAT
37
Spacer
600276
Not Available
38
Spacer
834040
$5,00 Unit Price incl. VAT
39
Spring washer
709047
$0,08 Unit Price incl. VAT
40
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
41
Bracket
842744
Not Available
42
Soundproofing material
601109
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
