1
Engine displacement
500
2
Model
X9
3
Year
0
4
Trim
X9 Evolution (ABS)
5
Parts Catalog

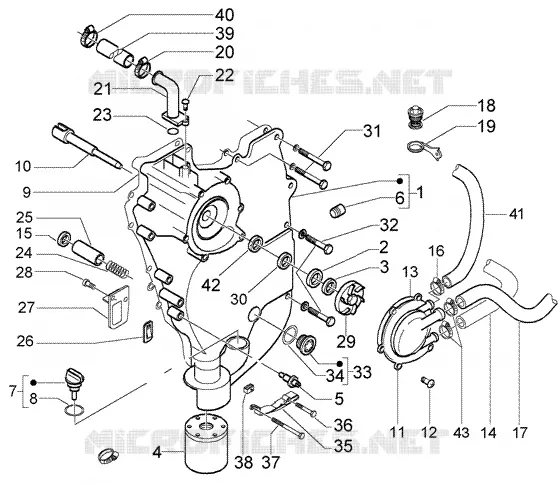

Flywheel cover-oil filter
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Reduction unit cover
Flywheel cover-oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
Flywheel cover
8415115
Not Available
1
Flywheel cover
8310205
Not Available
2
Ceramic insert
486216
Not Available
3
Washer
829557
$0,09 Unit Price incl. VAT
4
Oil filter
830239
$31,05 Unit Price incl. VAT
4
Oil filter cpl.
82658R
$21,87 Unit Price incl. VAT
5
Oil pressure sensor
82580R
$16,59 Unit Price incl. VAT
6
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
7
Oil plug
825665
Not Available
8
O-ring
479986
Not Available
9
Half crankcase gasket
82703R
Not Available
9
Gasket
841150
Not Available
10
Water pump shaft assy.
828394
$41,73 Unit Price incl. VAT
11
Water pump cover
833717
Not Available
11
Pump cover
827883
$29,51 Unit Price incl. VAT
12
screw
842041
$0,08 Unit Price incl. VAT
12
screw M5x16
259151
$4,38 Unit Price incl. VAT
13
O-ring
827884
$4,82 Unit Price incl. VAT
14
Pump-cylinder pipe fitting link
828212
$39,20 Unit Price incl. VAT
14
Pump-cylinder pipe fitting link
841101
Not Available
15
Washer 10.5X16X2.5
486075
$1,58 Unit Price incl. VAT
16
Hose clamp
CM001917
$3,65 Unit Price incl. VAT
17
Thermostat-head pipe
840826
$10,00 Unit Price incl. VAT
17
Radiator-pump pipe fitting link
975697
$36,58 Unit Price incl. VAT
18
Water thermostat
844566
Not Available
18
Water thermostat
834484
Not Available
19
Bracket
840062
$2,83 Unit Price incl. VAT
20
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
21
Breather pipe
829047
$2,57 Unit Price incl. VAT
22
Screw M5x16
015715
$2,25 Unit Price incl. VAT
23
O-ring
237553
$1,36 Unit Price incl. VAT
24
Spring
829486
$4,82 Unit Price incl. VAT
25
Oil pressure valve
829661
$6,44 Unit Price incl. VAT
26
Reeds bracket
825051
Not Available
27
Valve tightening plate with U.P.
828930
$6,38 Unit Price incl. VAT
28
screw M5x10
433800
$0,19 Unit Price incl. VAT
29
Water pump impeller cpl.
827929
Not Available
30
Gasket ring
485084
Not Available
30
Gasket ring
842595
Not Available
31
screw M6x35
414838
$0,67 Unit Price incl. VAT
32
Screw w/ flange M6x25
414837
Not Available
33
Timing plug assembly
8290405
$10,28 Unit Price incl. VAT
34
O-ring
479986
Not Available
35
Plate
834990
Not Available
36
Screw w/ flange M6x30
289731
Not Available
37
Screw w/ flange
478895
$0,50 Unit Price incl. VAT
38
Pad
583973
Not Available
39
Oil breather pipe
829254
$36,58 Unit Price incl. VAT
40
Hose clamp
CM001907
$0,84 Unit Price incl. VAT
41
Pump-thermostat "by pass" pipe
841102
$6,30 Unit Price incl. VAT
41
Pump-thermostat "by pass" pipe
828218
Not Available
42
Gasket ring 8x16x7
825577
$3,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
