1
Engine displacement
500
2
Model
X9
3
Year
0
4
Trim
X9 Evolution (ABS)
5
Parts Catalog
Electrical devices
6

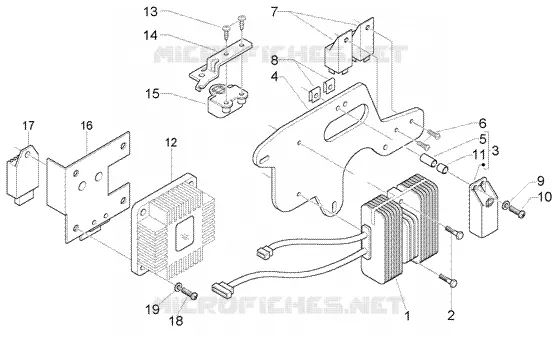

Parts Diagram
Parts Catalog
Electrical device-battery
by
Main cables unit
Electrical devices
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Voltage regulator
584533
Not Available
2
Screw w/ flange
828863
$0,09 Unit Price incl. VAT
3
Stand power unit
582098
$74,95 Unit Price incl. VAT
4
Bracket
582141
Not Available
5
Spacer
217164
$0,62 Unit Price incl. VAT
6
TBIC screw
015597
$0,08 Unit Price incl. VAT
7
Relay 12V-30A
58002R
Not Available
8
Spring plate
826275
Not Available
9
TBIC screw
015597
$0,08 Unit Price incl. VAT
10
Flat washer 5,2x18x1,5
016686
$2,25 Unit Price incl. VAT
11
Pad
217163
$0,54 Unit Price incl. VAT
12
Electronic injection device
584558
Not Available
12
Electronic injection device
584739
Not Available
13
Screw d3,5x9,5
008432
$3,65 Unit Price incl. VAT
14
Plate
583385
Not Available
15
Buzzer
583363
$24,44 Unit Price incl. VAT
16
Bracket
638887
Not Available
17
Device
638873
Not Available
18
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
19
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
