Engine displacement
250
2
Model
X9
3
Year
0
4
Trim
X9 Evolution
5
Parts Catalog
Carburettor
6
Parts Diagram
Parts Catalog
Carburettor
by
Air filter
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Circlip
826822
$0,72 Unit Price incl. VAT
2
Washer
826821
$0,68 Unit Price incl. VAT
3
Washer
826843
Not Available
4
Spring
826839
$0,65 Unit Price incl. VAT
5
Starter
CM129802
Not Available
6
screw
826780
Not Available
7
Spring
828746
Not Available
8
Gas valve cover
827467
$24,03 Unit Price incl. VAT
9
screw
826826
$1,39 Unit Price incl. VAT
10
Float
826812
$12,65 Unit Price incl. VAT
11
Gas valve spring
CM107902
Not Available
12
screw
826770
$0,68 Unit Price incl. VAT
13
Float chamber
CM109809
Not Available
14
Lock
827856
Not Available
15
Petrol needle
826786
Not Available
16
Starter cover
826866
$15,37 Unit Price incl. VAT
17
Idling jet 34
CM105301
Not Available
18
Maximum jet 105
CM105407
$6,35 Unit Price incl. VAT
19
Spring
826818
$1,96 Unit Price incl. VAT
20
Cup
826820
$6,45 Unit Price incl. VAT
21
Diaphragm Walbro
CM129701
$129,80 Unit Price incl. VAT
22
Conical pin
CM106504
$8,64 Unit Price incl. VAT
23
screw
826824
$4,04 Unit Price incl. VAT
24
Bellows kit
840453
Not Available
25
Adj.min.eng.speed air screw
CM106402
$5,20 Unit Price incl. VAT
26
Starter cap
826768
Not Available

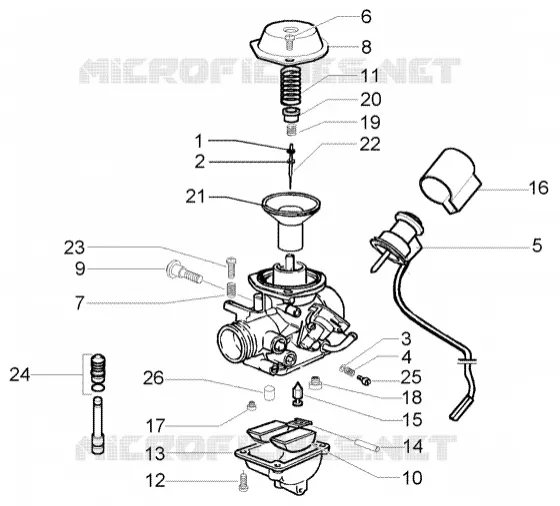

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
