Engine displacement
250
2
Model
X9
3
Year
0
4
Trim
X9 Evolution
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Chassis
by
Central stand
Swinging arm
1
2
3
4
5
6
7
7
8
9
10
10
11
12
12
13
14
15
16
17
18
19
20
20
1
Swinging arm
597503
Not Available
1
Swinging arm
601445
Not Available
2
Spacer L=228 mm
CM067803
$11,11 Unit Price incl. VAT
3
Bush
597079
$10,29 Unit Price incl. VAT
4
screw
597081
$5,20 Unit Price incl. VAT
5
Swinging arm
597502
$108,35 Unit Price incl. VAT
6
Roller cage
56127R
$5,55 Unit Price incl. VAT
7
Nut
564878
$2,99 Unit Price incl. VAT
8
Circlip
006416
$0,08 Unit Price incl. VAT
9
Silent-block
272750
$12,52 Unit Price incl. VAT
10
Roller cage
56127R
$5,55 Unit Price incl. VAT
11
plate
599954
$196,89 Unit Price incl. VAT
12
Bush
273460
$0,75 Unit Price incl. VAT
13
Bolt
031153
$3,65 Unit Price incl. VAT
14
Washer
597230
$1,15 Unit Price incl. VAT
15
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
16
Spring
597490
$4,82 Unit Price incl. VAT
17
Spacer L=183 mm
CM067801
$6,51 Unit Price incl. VAT
18
Hex socket screw
597080
$6,60 Unit Price incl. VAT
19
Nut m22x2 h=8
564611
$3,65 Unit Price incl. VAT
20
Self locking nut M10
232108
Not Available

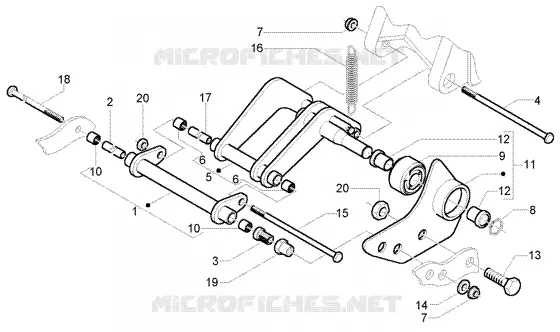

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
