Engine displacement
250
2
Model
X9
3
Year
0
4
Trim
X9 Evolution
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Central part
by
Crankase
Fuel tank
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
26
27
27
28
29
30
31
1
Level gauge
CM066907
Not Available
1
Level gauge
CM075607
Not Available
2
Fuel tank
576828
Not Available
3
Hose clamp
577557
Not Available
4
Complete coupling
574358
Not Available
5
Plug
259832
$1,10 Unit Price incl. VAT
6
Tank cover gasket
258160
$1,00 Unit Price incl. VAT
7
Gasket
196868
$3,70 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Fuel recovery tank
575873
$5,38 Unit Price incl. VAT
10
Fuel filter
270423
$10,67 Unit Price incl. VAT
11
Ring
297378
Not Available
12
Screw M6x16
272836
$3,70 Unit Price incl. VAT
13
Washer
078307
$0,17 Unit Price incl. VAT
14
Fuel pump
CM120901
$85,05 Unit Price incl. VAT
15
Hose clamp
CM002907
$0,42 Unit Price incl. VAT
16
Fuel tube
CM004118
$6,30 Unit Price incl. VAT
16
Fuel pipe
CM004126
Not Available
17
Valve
574633
Not Available
18
Fuel tube
CM004125
Not Available
19
pipe
CM006109
Not Available
20
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
21
Flat washer
270216
$2,99 Unit Price incl. VAT
22
Fuel pump bracket
620066
Not Available
23
screw M6x16
031088
$0,17 Unit Price incl. VAT
24
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
25
Hose clamp
CM002904
$0,42 Unit Price incl. VAT
26
Filler insert
575304
Not Available
27
Hose clamp
109960
Not Available
28
Elastic drift
463195
Not Available
29
Self locking nut M6
195482
$0,19 Unit Price incl. VAT
30
Fuel pipe
CM004126
Not Available
31
Fuel pipe
CM011901
$7,23 Unit Price incl. VAT

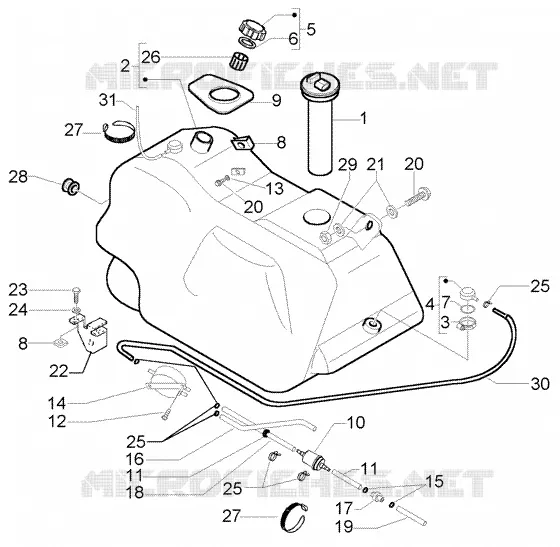

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
