Parts Catalog
Carburettor
6
Parts Diagram
Parts Catalog
Belt cooling tube
by
Carburettor
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
1
Carburettor
82716R
Not Available
2
Union pipe
840949
Not Available
3
Hose clamp
709532
Not Available
4
Ring
841232
$3,65 Unit Price incl. VAT
5
FASCETTA STRINGITUBO
CM002916
$3,65 Unit Price incl. VAT
6
FILTRO PRESA ARIA MEMBRANA
841695
$7,69 Unit Price incl. VAT
7
FASCETTA STRINGITUBO
289690
$2,96 Unit Price incl. VAT
8
FASCETTA STRINGITUBO 50/70
260918
$1,68 Unit Price incl. VAT
9
MANICOTTO DEPURATORE-CARBURATORE
841231
$5,38 Unit Price incl. VAT
10
Heater
828742
Not Available
11
VITE TESTA ESAGON.GAMBO INTER.FILETT.
031091
$0,17 Unit Price incl. VAT
12
TUBO BY PASS TESTA-CARBURATORE
827921
$19,68 Unit Price incl. VAT
13
TUBO BY PASS
434381
$5,38 Unit Price incl. VAT
14
FASCETTA STRINGITUBO
CM002903
$2,95 Unit Price incl. VAT

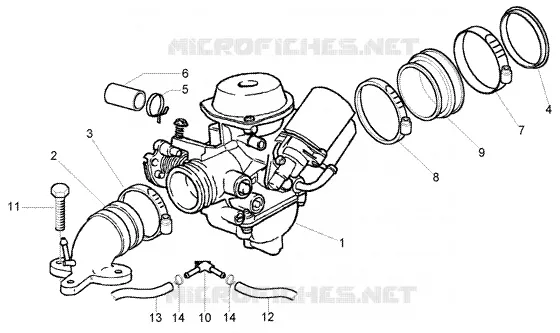

Find the detailed Carburettor GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
