Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Cylinder - piston - wrist pin, assy
by
Rear wheel
Front wheel
1
2
3
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
16
1
DADO
271740
$0,67 Unit Price incl. VAT
2
ASSE RUOTA ANTERIORE
564446
$24,90 Unit Price incl. VAT
3
Speedometer encoder
58014R
Not Available
4
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT
5
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
6
RONDELLA
274706
$0,24 Unit Price incl. VAT
7
Brake disc
564371
Not Available
8
Bearing
327187
$11,03 Unit Price incl. VAT
9
DISTANZIALE
564447
$9,41 Unit Price incl. VAT
10
Bearing
564491
$9,18 Unit Price incl. VAT
11
DISTANZIALE
564448
$8,01 Unit Price incl. VAT
12
Front wheel complete
597519T
Not Available
13
VALVOLA TUBELESS
597679
$3,03 Unit Price incl. VAT
14
Tyre
599225
Not Available
14
Tyre 120/70-14"
564365
Not Available
15
SCODELLINO DX
564489
$3,65 Unit Price incl. VAT
16
PASSACAVO
560136
$3,65 Unit Price incl. VAT

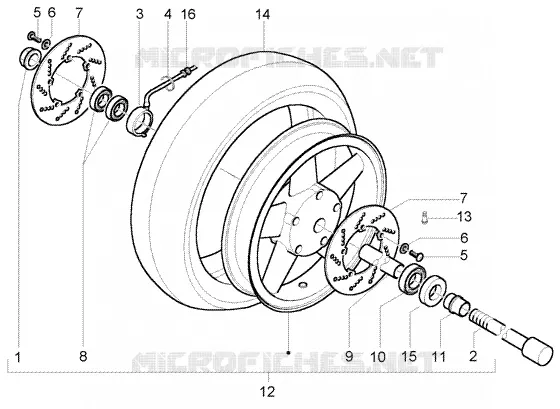

Find the detailed Front wheel GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
