Front top case for GILERA PIAGGIO VESPA X9 Evolution

Front top case

1

BAULETTO

577752000P

$215,79 Unit Price incl. VAT

2

PORTELLO BAULETTO

576847000P

$51,49 Unit Price incl. VAT

3

TRASMISSIONE SPORTELLO SERBATOIO

CM012812

$9,86 Unit Price incl. VAT

4

SQUADRETTA

252420

$0,59 Unit Price incl. VAT

5

VITE AUTOF.CON TAGLIO A CROCE 3,5x13

297498

$0,08 Unit Price incl. VAT

6

GUARNIZIONE PORTELLO

297275

$5,38 Unit Price incl. VAT

7

Spring

575608

$5,38 Unit Price incl. VAT

8

CAGNOLETTO

575607

$1,35 Unit Price incl. VAT

9

Spring

575610

$5,38 Unit Price incl. VAT

10

LEVETTA

577861

$1,35 Unit Price incl. VAT

11

PERNO

575062

$5,38 Unit Price incl. VAT

12

SUPPORTO CON PERNO

575021

$4,04 Unit Price incl. VAT

13

VASCHETTA

575849

$11,69 Unit Price incl. VAT

14

MOLLA PER PORTELLO

575846

$7,23 Unit Price incl. VAT

15

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

16

PORTELLO CRUSCOTTO SX

575574000P

$26,74 Unit Price incl. VAT

16

PORTELLO CRUSCOTTO DX

575575000P

$26,74 Unit Price incl. VAT

17

LH plate

575844

$13,53 Unit Price incl. VAT

17

PIASTR.DX.FISS.PORT.CR

575845

$13,53 Unit Price incl. VAT

18

SQUADRETTA FISSAGGIO PORTELLO

257614

$1,09 Unit Price incl. VAT

19

VITE

258249

$0,09 Unit Price incl. VAT

20

PIASTRINA ELASTICA

CM017410

$0,34 Unit Price incl. VAT

21

DADO AUTOFRENANTE M4

577620

$0,08 Unit Price incl. VAT

22

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

23

LEVETTA PER SERRATURA

575863

$5,38 Unit Price incl. VAT

24

VITE SPECIALE M4

299972

$0,50 Unit Price incl. VAT

25

GANCIO PORTABORSA COMPLETO

575819

$12,88 Unit Price incl. VAT

26

VITE AUTOF. TCCIC D4,2x13 UNI 947

259349

$0,17 Unit Price incl. VAT

27

CONTROSPORTELLO

576816

$20,60 Unit Price incl. VAT

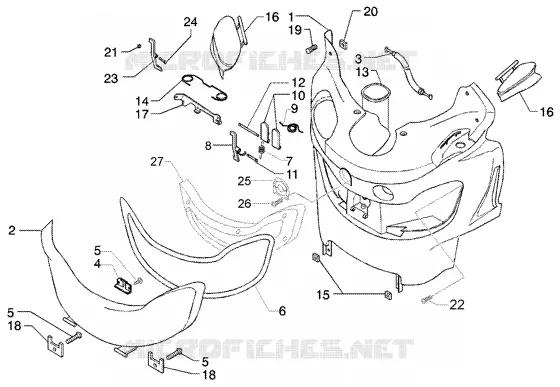

Find the detailed Front top case GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
