Parts Catalog
Locks
6
Parts Diagram
Parts Catalog
Main cacles unit
by
Cylinder - piston - wrist pin, assy
Locks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Key switch
582951
Not Available
2
MOLLETTA
253937
$0,25 Unit Price incl. VAT
3
BLOCCHETTO SERRAT.COMP
577816
$20,60 Unit Price incl. VAT
4
Lock body
298581
Not Available
5
PORTABOLLO E ASSICURAZ
575816
$0,49 Unit Price incl. VAT
5
SBOZZATO
575810
$55,57 Unit Price incl. VAT
6
CILINDRETTO E CHIAVI PER SERRATURA
576552
$48,63 Unit Price incl. VAT
7
ANELLO DI TENUTA
298731
$0,25 Unit Price incl. VAT
8
MOLLA RITEGNO CILINDRETTO
298838
$0,51 Unit Price incl. VAT
9
RONDELLA
298594
$1,01 Unit Price incl. VAT
10
Immobilizer antenna
828800
Not Available
11
STAFFA SUPPORTO ATTUATORE
577194
$8,16 Unit Price incl. VAT
12
Solenoid valve
582990
Not Available
13
MOLLA
620415
$4,82 Unit Price incl. VAT
14
MOLLA
577131
$4,82 Unit Price incl. VAT
15
VITE SPECIALE M4
299972
$0,50 Unit Price incl. VAT
16
VITE A TESTA ESAGONALE
584121
$0,34 Unit Price incl. VAT
17
DADO AUTOFRENANTE M4
577620
$0,08 Unit Price incl. VAT
18
GIUNTO
577128
$1,01 Unit Price incl. VAT
19
LEVA DI RINVIO
577129
$1,43 Unit Price incl. VAT
20
Transmission
CM012805
$8,51 Unit Price incl. VAT
21
Transmission
CM012809
$9,99 Unit Price incl. VAT
22
CAPPUCCIO PER COMMUTATORE
582041
$3,11 Unit Price incl. VAT

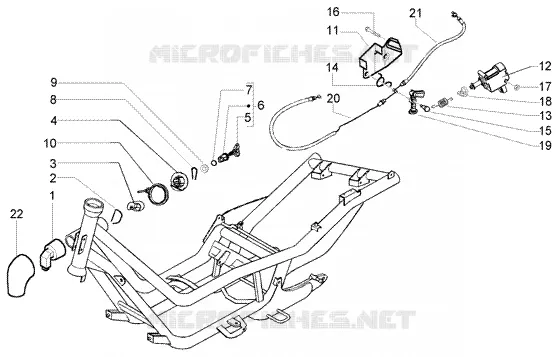

Find the detailed Locks GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
