1
Engine displacement
250
2
Model
X9
3
Year
0
4
Trim
X9 Evolution
5
Parts Catalog

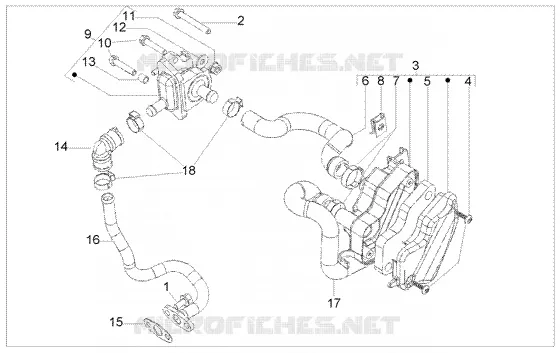

Secondary air box
6
Parts Diagram
Parts Catalog
Engine
by
Silencer
Secondary air box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Screw w/ flange M6x14
833722
Not Available
2
screw
414835
$0,15 Unit Price incl. VAT
3
Filter holder
840473
$41,50 Unit Price incl. VAT
4
VITE AUTOFILETTANTE (3X20)
258146
$0,25 Unit Price incl. VAT
5
Filtering element
840476
$6,35 Unit Price incl. VAT
6
TUBO DI ASPIRAZIONE SCATOLA S.A.S.
841558
$17,07 Unit Price incl. VAT
7
FASCETTA STRINGITUBO
CM001905
$1,38 Unit Price incl. VAT
8
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
9
SAS valve
82731R
$89,76 Unit Price incl. VAT
10
Screw w/ flange M6x30
289731
Not Available
11
DADO ES.FLG.M6 DIN-6923
288245
$0,16 Unit Price incl. VAT
12
RONDELLA PIANA METALLICA
013880
$0,08 Unit Price incl. VAT
13
Spacer
842934
Not Available
14
RACCORDO IN GOMMA S.A.S.
840587
$6,30 Unit Price incl. VAT
15
GUARNIZIONE RACCORDO
832059
$4,89 Unit Price incl. VAT
16
TUBO VALVOLA S.A.S.
840585
$13,53 Unit Price incl. VAT
17
TUBO DEPRESSIONE
843400
$5,54 Unit Price incl. VAT
18
FASCETTA STRINGITUBO
CM001904
$0,75 Unit Price incl. VAT

Find the detailed Secondary air box GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
