Engine displacement
125
2
Model
X9
3
Year
0
4
Trim
X9 SL
5
Parts Catalog
Carburettor
6

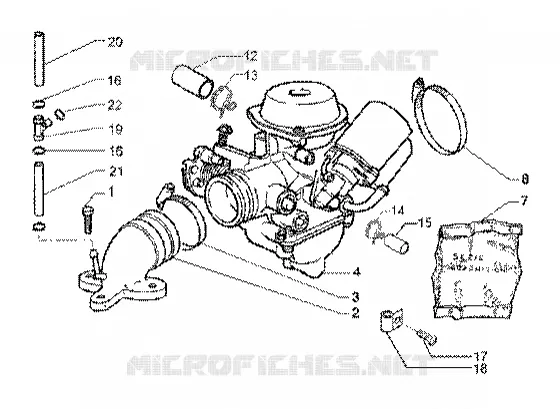

Parts Diagram
Parts Catalog
Belt cooling tube-intake tube
by
Carburettor
Carburettor
1
2
3
4
7
8
12
13
14
15
16
16
17
18
19
20
21
22
1
screw M6x25
830487
Not Available
2
Union pipe
484748
$54,00 Unit Price incl. VAT
3
Hose clamp
709532
Not Available
4
Carburettor assy.
CM128204
$772,12 Unit Price incl. VAT
4
Carburettor
CM116003
Not Available
7
Carburettor gasket set Per carburatore WALBRO
494921
Not Available
8
Hose clamp
709532
Not Available
12
Socket
828610
Not Available
13
Hose clamp
CM002916
$3,65 Unit Price incl. VAT
14
Hose clamp
CM002907
$0,42 Unit Price incl. VAT
15
pipe
4353355
Not Available
15
Fuel pipe
CM004126
Not Available
16
Hose clamp
CM002904
$0,42 Unit Price incl. VAT
17
Screw M5x10
018575
$2,95 Unit Price incl. VAT
18
Hose clamp
827542
$5,38 Unit Price incl. VAT
19
Tee union
828325
$1,57 Unit Price incl. VAT
20
Breather pipe
CM001513
$4,82 Unit Price incl. VAT
21
Fuel pipe
CM001418
Not Available
22
Hose clamp
CM002901
$0,09 Unit Price incl. VAT
