1
Engine displacement
125
2
Model
X9
3
Year
0
4
Trim
X9 SL
5
Parts Catalog
Stoßdämpfer
6

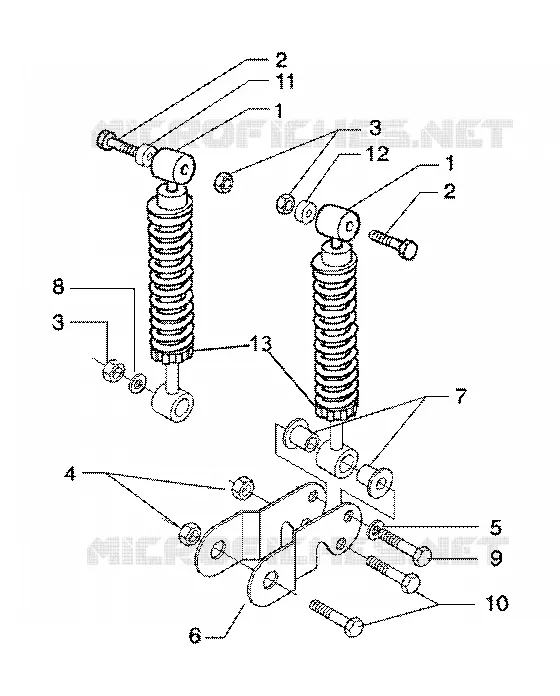

Parts Diagram
Parts Catalog
Fork
by
Instruments set
Stoßdämpfer
1
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
1
Shock absorber
564995
Not Available
2
Screw m10x65
015594
$0,72 Unit Price incl. VAT
3
Self locking nut M10
232108
Not Available
4
Nut M8
020008
$0,08 Unit Price incl. VAT
5
Washer
709646
Not Available
6
Bracket
564994
Not Available
7
Bush
597149
$3,65 Unit Price incl. VAT
8
Washer
016627
Not Available
9
Hex screw M10x45
015578
$2,99 Unit Price incl. VAT
10
Screw m8x50
432334
$3,65 Unit Price incl. VAT
10
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
11
Spacer
597178
$3,65 Unit Price incl. VAT
12
Spacer
597179
$3,65 Unit Price incl. VAT
13
Housing
274860
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
