Parts Catalog
Wheel compartment- mudguard
6
Parts Diagram
Parts Catalog
Side coverings-spoiler
by
Saddle-tools kit- sattel-werkzeugtasche

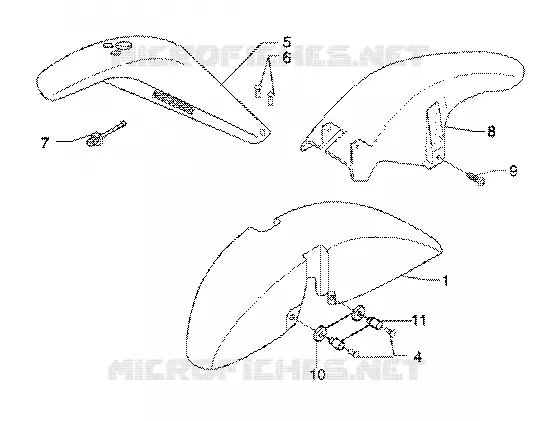

Wheel compartment- mudguard
1
4
5
6
7
8
9
10
11
1
Front mudguard
59828900D1
Not Available
1
Front mudguard
59828900R8
Not Available
1
Front mudguard
59828900E2
Not Available
1
Mudguard
5982890090
Not Available
1
Front mudguard
59828900V3
Not Available
1
Mudguard
59828950D8
Not Available
1
Front mudguard
5982890060
Not Available
1
Front mudguard
59828900A7
Not Available
1
Front mudguard
59828900N3
Not Available
4
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
5
Wheel compartment
57555200E8
Not Available
6
Screw M6x16
272836
$3,70 Unit Price incl. VAT
7
Ambient temperature sensor
581142
Not Available
8
Mudguard
577069
Not Available
8
Mudguard
621503
Not Available
9
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
10
Pad
217163
$0,54 Unit Price incl. VAT
11
Spacer
598288
$3,65 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
