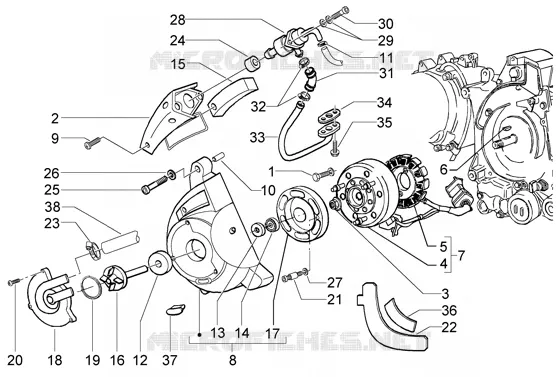

Flywheel magneto FOR Gilera Piaggio Vespa X9 Evolution

Flywheel magneto

1

Screw M5x10

018575

$2,95 Unit Price incl. VAT

2

Cover

831255

$7,69 Unit Price incl. VAT

3

Flanged nut M12

436783

Not Available

4

(Mitsuba) complete rotor

486140

Not Available

4

Rotor

827903

Not Available

5

Stator

833697

Not Available

5

Stator

828135

Not Available

5

Stator

827902

Not Available

6

Transmission key

000267

$1,19 Unit Price incl. VAT

7

Complete magneto flywheel

58059R

$113,40 Unit Price incl. VAT

7

Cdi magneto assy

82572R

Not Available

8

Cover

8403235

Not Available

9

Screw M5x22

828662

$0,25 Unit Price incl. VAT

10

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

11

Hose clamp

CM002901

$0,09 Unit Price incl. VAT

12

Gasket

831258

$4,82 Unit Price incl. VAT

13

Ceramic insert

486216

Not Available

14

Ball bearing

827149

Not Available

15

Filter

831257

$3,78 Unit Price incl. VAT

16

Water pump shaft assy.

827714

Not Available

17

Drive coupling

487459

$7,23 Unit Price incl. VAT

18

Water pump cover

486237

$20,60 Unit Price incl. VAT

19

O-ring

485080

$0,72 Unit Price incl. VAT

20

Screw M5x22

828662

$0,25 Unit Price incl. VAT

21

screw

828569

Not Available

22

Cover

834119

$5,38 Unit Price incl. VAT

23

Hose clamp

CM001908

$3,65 Unit Price incl. VAT

24

Gasket

831256

$4,82 Unit Price incl. VAT

25

screw

828493

$2,95 Unit Price incl. VAT

26

Washer 5.3x10x10

006965

$0,08 Unit Price incl. VAT

27

Washer

828535

$2,99 Unit Price incl. VAT

28

SAS valve

82731R

$89,76 Unit Price incl. VAT

29

Plain washer 12x5.2x1

006078

$0,08 Unit Price incl. VAT

30

Self tapping screw L=35 mm

296458

$2,25 Unit Price incl. VAT

31

s.a.s. joint pipe

831259

$2,05 Unit Price incl. VAT

32

Hose clamp

CM001904

$0,75 Unit Price incl. VAT

33

pipe

831260

$31,21 Unit Price incl. VAT

34

Gasket

832059

$4,89 Unit Price incl. VAT

35

Screw w/ flange M6x14

833722

Not Available

36

Soundproofing material

834153

Not Available

37

Cover

825529

$5,38 Unit Price incl. VAT

38

Oil delivery pipe

840022

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
