Parts Catalog

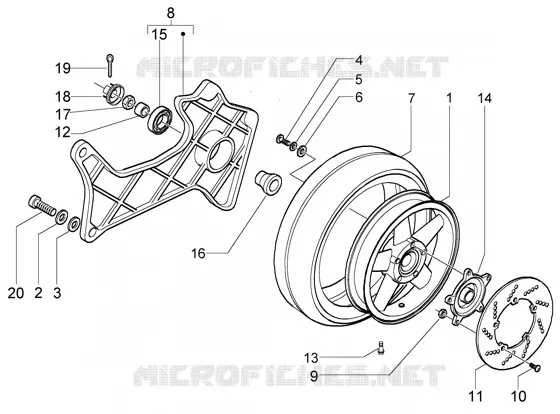

Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Head-valves
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Rear wheel, grey
598498
Not Available
2
Spring washer
709047
$0,08 Unit Price incl. VAT
3
Washer
013776
$0,34 Unit Price incl. VAT
4
screw M8x40
825758
$0,33 Unit Price incl. VAT
5
Spring washer
709047
$0,08 Unit Price incl. VAT
6
Washer
246976
$1,84 Unit Price incl. VAT
7
Tyre 140/60-14" Michelin
564974
Not Available
7
Tyre
564975
Not Available
8
Suspension arm
828586
Not Available
8
Suspension arm
599840
Not Available
9
Self locking nut
597565
$0,50 Unit Price incl. VAT
10
screw
597564
$0,50 Unit Price incl. VAT
11
Brake disc
564371
Not Available
12
Spacer
597528
$1,51 Unit Price incl. VAT
13
Tubeless valve
597679
$3,03 Unit Price incl. VAT
14
Rear wheel hub
56110R
Not Available
14
Rear wheel hub
598070
Not Available
15
Radial bearing 17x47x14
826974
Not Available
15
Ball bearing
82545R
$12,11 Unit Price incl. VAT
16
Spacer
597390
Not Available
17
Nut M16x13
563728
$1,42 Unit Price incl. VAT
18
Nut hold cap
194423
$0,48 Unit Price incl. VAT
19
Split pin
012789
$0,16 Unit Price incl. VAT
20
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
