1
Engine displacement
125
2
Model
X9
3
Year
0
4
Trim
X9 Evolution
5
Parts Catalog
Saddle-tools kit
6
Parts Diagram
Parts Catalog
Wheel compartment- mudguard
by
Fork

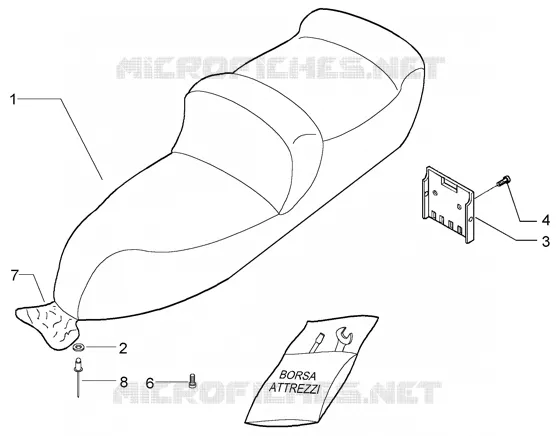

Saddle-tools kit
1
2
3
4
6
7
8
1
Saddle assembly
CM020303
Not Available
1
Saddle
CM020302
Not Available
1
Saddle
620763
Not Available
2
Washer 4,5x12x1
016670
$0,09 Unit Price incl. VAT
3
Saddle lock
575547
Not Available
4
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
5
Tool roll
5835024
$15,39 Unit Price incl. VAT
5
Tool roll
635096
Not Available
6
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
7
Saddle guard cooling hood
576061
$30,74 Unit Price incl. VAT
8
Rivet
252099
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
