Engine displacement
500
2
Model
BV
3
Year
2005
4
Trim
BV
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Crankshaft
by
Head unit - Valve
Cylinder-piston-wrist pin unit
1
3
4
5
6
7
8
9
10
11
12
13
1
Piston assy cat4
8328120004
Not Available
1
Piston assy
8328120001
Not Available
1
Piston assy cat2
8328120002
Not Available
1
Piston assy cat3
8328120003
Not Available
3
Oil scraper ring d.92
827706
$39,27 Unit Price incl. VAT
4
Oil scraper ring d.92x2,5
827707
Not Available
5
Piston pin
827820
$26,21 Unit Price incl. VAT
6
Stop ring
828116
$0,29 Unit Price incl. VAT
7
Ring
832770
$36,45 Unit Price incl. VAT
8
Cylinder with piston
832811
Not Available
9
Cylinder base gasket 0,6
830276
$4,32 Unit Price incl. VAT
9
Cylinder base gasket 0,4
830277
$3,49 Unit Price incl. VAT
9
Cylinder base gasket 0,8
830275
$4,46 Unit Price incl. VAT
10
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
11
Chain tensioner bracket
847277
Not Available
11
Chain tensioner bracket
289919
Not Available
12
Guarnizione cilindro/tendicatena
847928
$0,42 Unit Price incl. VAT
12
Gasket
834254
$4,82 Unit Price incl. VAT
13
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT

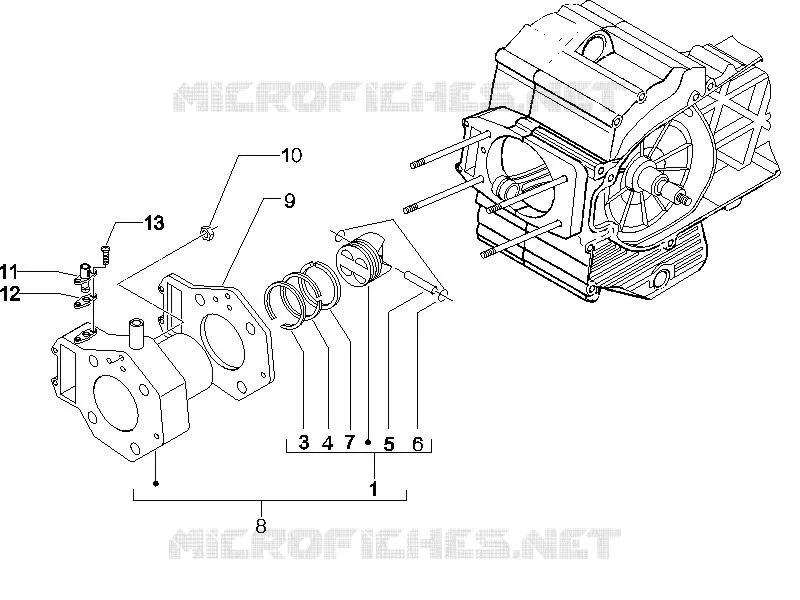

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
