1
Engine displacement
500
2
Model
BV
3
Year
2005
4
Trim
BV
5
Parts Catalog
Helmet huosing - Undersaddle
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Rear cover - Splash guard

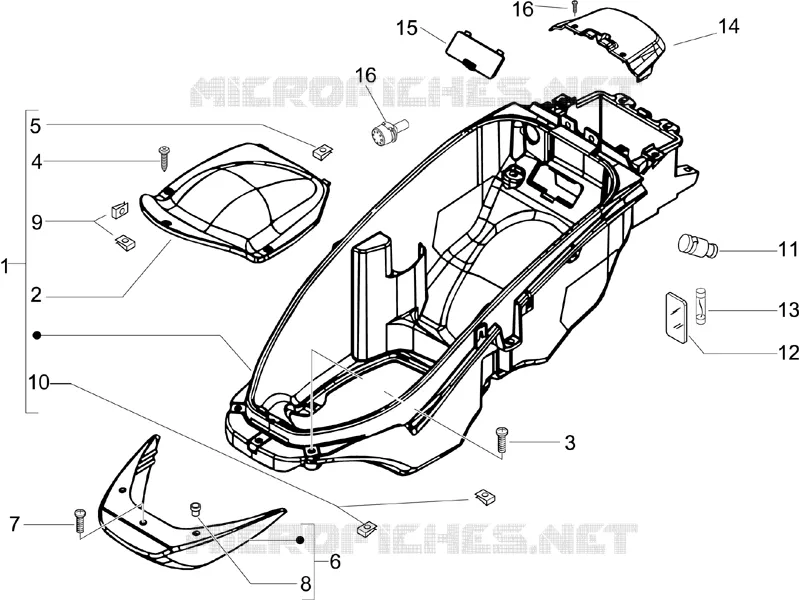

Helmet huosing - Undersaddle
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
1
HELMET HOLDER ASSY.
623167
Not Available
2
Carburettor cover
620673
$50,73 Unit Price incl. VAT
3
Screw M6x16
272836
$3,70 Unit Price incl. VAT
4
Self tapping screw
270723
Not Available
5
Spring plate
230359
$2,95 Unit Price incl. VAT
6
Undersaddle lock
5775990043
$19,99 Unit Price incl. VAT
6
T ENGINE CENTRAL PROTECTI
5775994043
Not Available
7
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
8
Knurled bushing
830056
$0,34 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
Spring plate
CM017410
$0,34 Unit Price incl. VAT
11
LV socket 12V
294770
$17,07 Unit Price incl. VAT
12
Ceiling bowl
293154
$10,35 Unit Price incl. VAT
13
Torpedo shaped lamp 12V-5W
071633
$8,81 Unit Price incl. VAT
14
Battery cover
6207560043
$21,37 Unit Price incl. VAT
14
Battery cover
620756000C
$21,37 Unit Price incl. VAT
15
Type-testing inspection door
576793
$5,38 Unit Price incl. VAT
16
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
16
Cover
581412
$7,23 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
