1
Engine displacement
500
2
Model
BV
3
Year
2005
4
Trim
BV
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Main cable harness

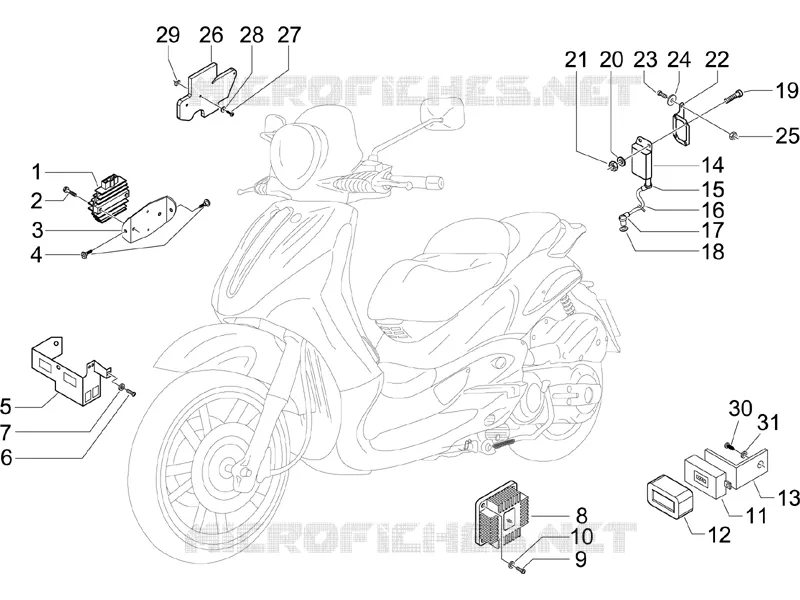

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
Voltage regulator
58086R
Not Available
2
Screw w/ flange
828863
$0,09 Unit Price incl. VAT
3
Bracket
620107
$5,53 Unit Price incl. VAT
4
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
5
Bracket
620109
$8,16 Unit Price incl. VAT
6
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
7
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
8
ELECTRONIC INJECTION DEVICE
CM078401
Not Available
8
Electronic injection device
584738
Not Available
9
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
10
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
11
Fuel level indicator sensor
584322
$232,70 Unit Price incl. VAT
12
Cover (carburettor)
639084
Not Available
13
Bracket
584331
$5,38 Unit Price incl. VAT
14
Coil
828817
$91,80 Unit Price incl. VAT
15
Insulating cap
071671
$1,29 Unit Price incl. VAT
16
H.V. cable
080341
$5,89 Unit Price incl. VAT
17
Screened cap
293845
$6,14 Unit Price incl. VAT
18
Protection collar
436919
$1,45 Unit Price incl. VAT
19
screw M3x20
583236
$3,70 Unit Price incl. VAT
20
Washer 3.2x5.7x0.9
012554
$1,56 Unit Price incl. VAT
21
Nut M 3
020003
$2,27 Unit Price incl. VAT
22
Coil holder
CM077302
$10,76 Unit Price incl. VAT
22
Coil holder
CM170002
Not Available
23
screw M6x16
031088
$0,17 Unit Price incl. VAT
24
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
25
Nut M6
020106
$0,08 Unit Price incl. VAT
26
Protection relay
584363
$10,76 Unit Price incl. VAT
27
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
28
Washer
013963
$0,19 Unit Price incl. VAT
29
Plate
CM017406
$3,65 Unit Price incl. VAT
30
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
31
Washer
003053
$2,95 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
