1
Engine displacement
50
2
Model
TYPHOON
3
Year
0
4
Trim
Typhoon X
5
Parts Catalog
Carburettor
6

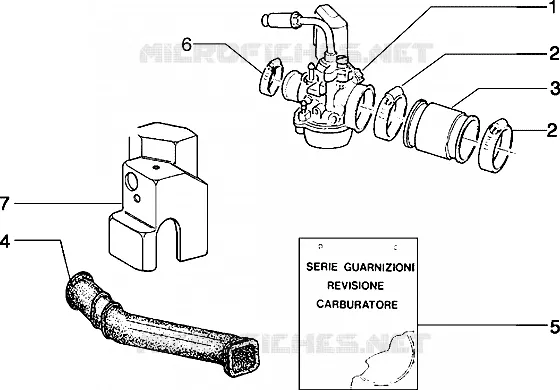

Parts Diagram
Parts Catalog
Brake lever
by
Carburettor
Carburettor
1
1
2
2
3
4
5
6
7
1
Carburettor
484925
Not Available
1
Carburettor
825107
Not Available
1
Carburettor
487135
Not Available
1
Carburettor
826190
Not Available
1
Carburettor
484920
$255,19 Unit Price incl. VAT
1
Carburettor
484922
Not Available
2
Hose clamp
109960
Not Available
3
pipe
436096
$3,32 Unit Price incl. VAT
4
Air deflector
433912
$3,94 Unit Price incl. VAT
5
Carburettor gasket kit
498409
$9,37 Unit Price incl. VAT
5
Gasket set
498475
$23,53 Unit Price incl. VAT
6
Hose clamp
825865
$0,57 Unit Price incl. VAT
7
Hood for carburettor
832186
$4,80 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
