1
Engine displacement
50
2
Model
TYPHOON
3
Year
0
4
Trim
Typhoon X
5
Parts Catalog

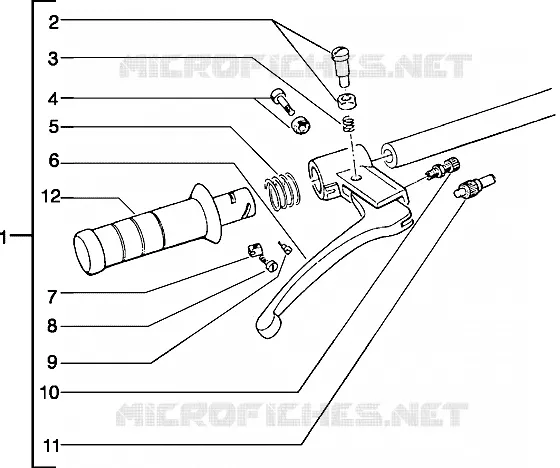

Handlebars component parts
6
Parts Diagram
Parts Catalog
Speedometers kms.-Handlebar covers
by
Front brake cylinder-Brake caliper
Handlebars component parts
1
2
3
4
5
6
7
8
9
10
11
12
1
Throttle
564703
$42,85 Unit Price incl. VAT
2
Screw with nut
265249
$3,70 Unit Price incl. VAT
3
Brake return spring
177072
$2,95 Unit Price incl. VAT
4
Screw with bushing
123394
$3,70 Unit Price incl. VAT
5
Spring
271174
Not Available
6
Lever
564690
$9,18 Unit Price incl. VAT
7
Sliding block
229935
$1,01 Unit Price incl. VAT
8
Sec. screw
123391
$0,27 Unit Price incl. VAT
9
screw
123389
Not Available
10
Register
498338
$3,65 Unit Price incl. VAT
11
stop Button
580953
$6,23 Unit Price incl. VAT
12
Grip
274490
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
