1
Engine displacement
50
2
Model
TYPHOON
3
Year
0
4
Trim
Typhoon X
5
Parts Catalog

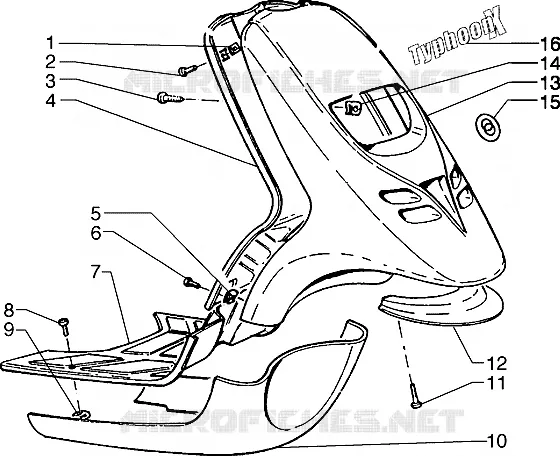

Front shield-Footboard-Spoiler
6
Parts Diagram
Parts Catalog
Chassis-Central stand
by
Engine
Front shield-Footboard-Spoiler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Spring plate
184142
Not Available
2
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
3
Screw m6x55
259988
$3,65 Unit Price incl. VAT
4
Counter shield
259908000C
Not Available
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
7
Footrest
298523000C
$36,15 Unit Price incl. VAT
8
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
Spoiler
4708005005
Not Available
10
Spoiler
4708905
Not Available
10
Spoiler
57517300N1
Not Available
10
Spoiler
575900
Not Available
10
Spoiler
4708005
Not Available
11
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
12
Covers
259951
$33,05 Unit Price incl. VAT
13
shield
9298905
Not Available
13
shield
9298005
Not Available
13
shield
57517000N1
Not Available
13
shield
9298005033
Not Available
13
shield
9298005005
Not Available
14
Spring plate M6
254485
$0,34 Unit Price incl. VAT
15
Piaggio shield
295596
Not Available
15
Front cover
573881
$1,11 Unit Price incl. VAT
15
Piaggio logo clip-on badge
574771
$4,32 Unit Price incl. VAT
15
Shield puch
573257
Not Available
15
Name plate
576319009B
Not Available
16
Name plate
5756880090
Not Available
16
Name plate
5756880033
Not Available
16
Name plate
575234
$2,63 Unit Price incl. VAT
17
Reflector
295647
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
