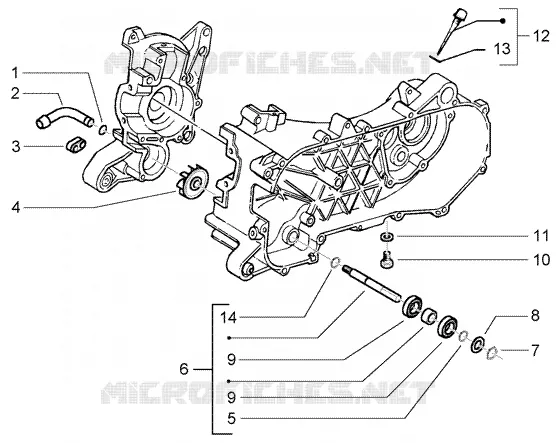

Water pump
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
1
O-ring
289254
$0,05 Unit Price incl. VAT
2
Water outlet union
830004
Not Available
3
Fairlead
827685
$0,74 Unit Price incl. VAT
4
Impeller
487730
$1,85 Unit Price incl. VAT
5
Safety washer
006408
$0,09 Unit Price incl. VAT
6
Water pump shaft assy.cpl.
497406
$30,65 Unit Price incl. VAT
7
Stop ring
289553
$0,15 Unit Price incl. VAT
8
Thrust washer
289554
$0,15 Unit Price incl. VAT
9
Bearing
487392
$1,89 Unit Price incl. VAT
10
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
11
Gasket
000397
Not Available
12
Complete oil level dipstick
832130
$2,94 Unit Price incl. VAT
13
Gasket ring 14,43x9,19x2,62
827085
$2,99 Unit Price incl. VAT
14
Ring
016719
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
