by

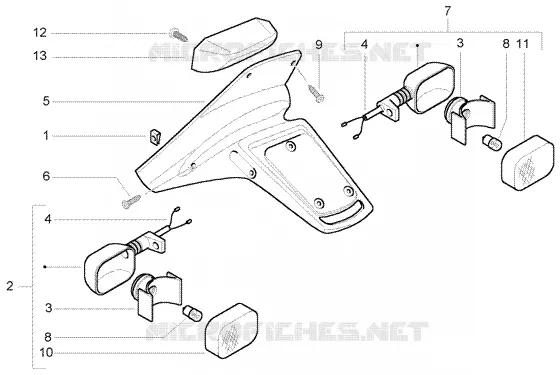

Rear tail lamp
1
2
3
3
4
4
5
6
7
8
8
9
10
11
12
13
1
Spring clamp
577594
$0,42 Unit Price incl. VAT
2
RH front/LH rear turn indic.
581804
$31,05 Unit Price incl. VAT
3
Lampholder
582247
Not Available
4
Cable harness
582248
$3,39 Unit Price incl. VAT
5
plate holder
959334000G
$13,36 Unit Price incl. VAT
6
screw
122364
Not Available
7
LH front/RH rear turn indic.
581803
$19,33 Unit Price incl. VAT
8
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
9
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
10
Glass
582244
Not Available
11
Glass
582244
Not Available
12
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
13
tail lamp
959406
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
